ขาย Extech PRC10

The PRC Current Calibrator and Meter is a precision source for calibrating process devices.

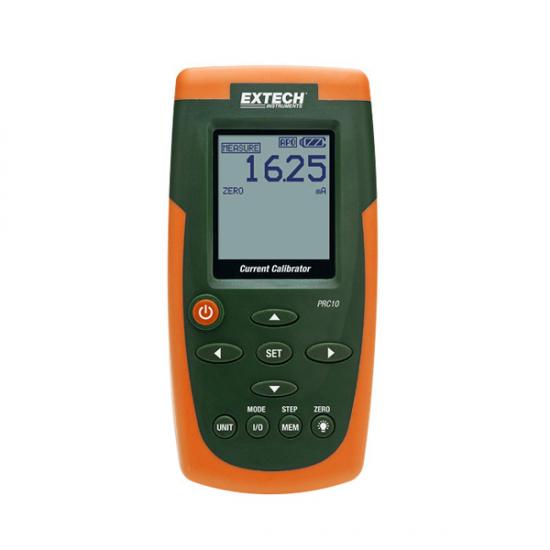

PRC10 : Current Calibrator/Meter

Precision Current Source/Measure Calibrator

Features :

0 to 24mA (-25 to 125%) readout
24V DC power source for 2-wire current loop
Up to five user adjustable calibration presets
Palm-sized double molded housing and large dot-matrix digital backlit LCD
Standard banana I/O ports
Large battery bank for extended work cycle
External power adapter for continuous work cycle
Includes test leads, alligator clips, 100V-240V AC universal adaptor with 4 plugs, six AA batteries, and hard carrying case

Specifications
Range
Source Output 0 to 24 mA current for loads up to 1000 ohms (-25% to 125%)
Measure 0 to 50 mA current signal (-25 to 230%)
Power/Measure Provides power (24 VDC) to loop & measures current
Input/Output Ranges and Displays Resolution
0 to 19.99 mA 0.01 mA
0 to 24.0 mA 0.1 mA
0 to 1999 mV 1 mV
0 to 20.00 V 10 mV
Accuracy 0.01% ±1 digit
Meter Dims (LxWxH) 6.3" x 3.2" x 1.7" (159 x 80 x 44 mm)
