ขาย KIMO CP200

เซ็นเซอร์วัดความดันลม > Pressure Sensor เซ็นเซอร์วัดความดันลม > Differential pressure transmitter CP200

Pressure Sensor เครื่องวัดความดัน

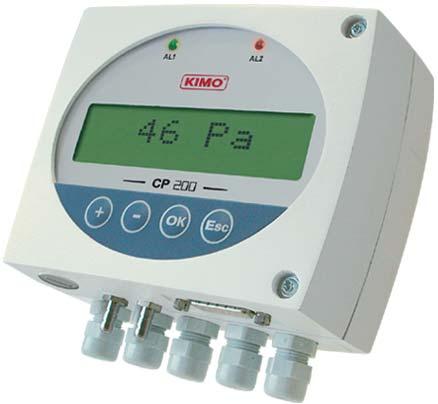

Differential pressure transmitter CP200

Differential pressure transmitter model CP200. Configurable range from -1000/+1000 Pa (minimum configurable range: 0 to ± 100 Pa) up to -2000/+2000 mBar (minimum configurable range: 0 to ± 200 mBar). 2 4-20 mA or 0-10 V outputs, 4-wire technology, RS 232 output, 2 RCR relays 6A / 230Vac (for models with no display, relay configuration via optional software). Configuration via keypad (for models with display) or via optional software (for all models). 24 Vdc/Vac or 115 Vac or 230 Vac power supply. With or without alphanumeric 2-line backlit display. ABS IP65 housing. Supplied with adjusting certificate. Optional: SQR/2 calculation function of air velocity and airflow, LCC-300 configuration software, calibration certificate.

Measuring ranges : from 0/+100 Pa to -2000/+2000 mBar
Configurable intermediary and central zero ranges
Air velocity and airflow functions (optional)
Simultaneous display of 2 parameters
2 output 4-20 mA or 0-10 V (4 wires), RS 232, 2 RCR relays 6A/230 Vac
2 visual (dual color LED) and audible (buzzer) alarms
Software or keypad configuration
ABS - IP 65 housing, with or without 2-line backlit display
Mounting with the 1/4 turn system with wall-mount plate
CP201

• from -1000/+1000 Pa
• Barbed fittings Ø 6,2 mm
• Unit of measurement : Pa, mmH2O, mbar, inWG, mmHG

CP202
• from -10 000/+10 000 Pa
• Barbed fittings Ø 6,2 mm
• Unit of measurement : Pa, mmH2O, mbar, inWG, mmHG

CP203
• from -500/+500 mbar
• Compression fittings Ø 4 x 6 mm
• Unit of measurement : mbar, inWG, mmHG, KPa, PSI
CP204 • from -2000/+2000 mbar
• Compression fittings Ø 4 x 6 mm
• Unit of measurement : mbar, inWG, mmHG, KPA, PSI

• Power supply : 24 Vca /Vdc, 115 Vac or 230 Vac
• Output : 2 x 4-20 mA or 2 x 0-10 V
• Functions : pressure, air velocity, airflow with Pitot tubes and Debimo, manual auto-zero, measuring integration, measuring correction factor, temperature compensation.
