ขาย Megger MIT1020/2

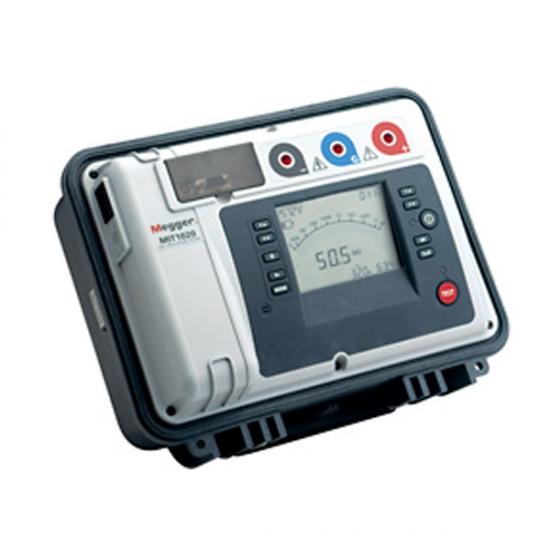

The MIT1020/2 insulation resistance tester is designed specifically to assist the user with the testing and maintenance of high voltage equipment. The instrument is designed in a user-friendly landscape style.

Insulation Resistance Tester
Mit1020/2

Features

Part number MIT1020/2
Manufactured by Megger
Accuracy at 23ºC
    ±5% to 1 TΩ
    ±20% to 20 TΩ
50V to 10kV voltage range
35 TΩ maximum reading
RS232 or USB download of results
3 mA short circuit current
Line supply or battery operated
Digital/analog backlit display
Ingress protection to IP65
CAT IV 600 V safety rating

Specifications:
Minimum Test Voltage 10 V
Maximum Test Voltage 10,000 V
Maximum Reading 35 TΩ
PC Interface USB and RS232 output
Alarm Alarm limit mode
