Dimensions
✓ 332 x 130 x 300 (WxHxD in mm)
Weight incl. Hard Paddles
✓ 5.5 kg w/o. battery
Power
✓ Mains supply, with or w/o. battery Charge time: to 360 Joules from mains or fully charged battery typically 12 seconds
Environmental Specifications
✓ Operation: Temperature: 0 to +40 °C, Rel. humidity: 10 to 95% at 20°C, Atmospheric pressure: 700 to 1060 hPa
✓ Storage and Transport: Temperature: -30 to +60 °C, Rel. humidity: 10 to 95% at 20°C, Atmospheric pressure: 500 to 1060 hPa
Defibrillator
✓ 11 energy levels; 2J, 5J, 7J, 10J, 20J, 30J, 50J, 100J, 200J, 300J, 360J, selection with rotary selector switch
✓ Waveform: monophase damped sinusoidal halfwave with decay period
✓ non-synchronized defibrillation
Detection of external signals
✓ Analog 1-Volt ECG signal or specific Sync signal from monitor Sync signal is returned to monitor to enable display of the Sync pulse Internal self-test with indication of error codes for servicing
Defibrillation Electrodes

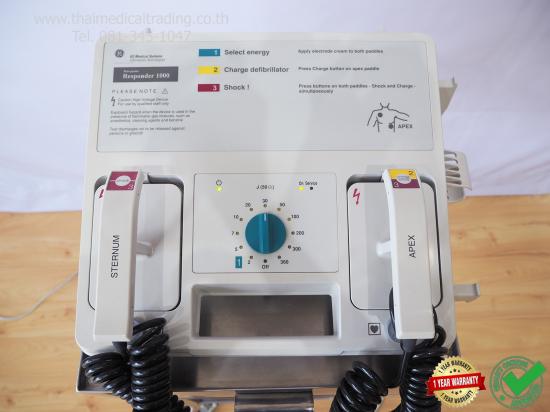

✓ Marquette Responder 1000: wired hard paddles
