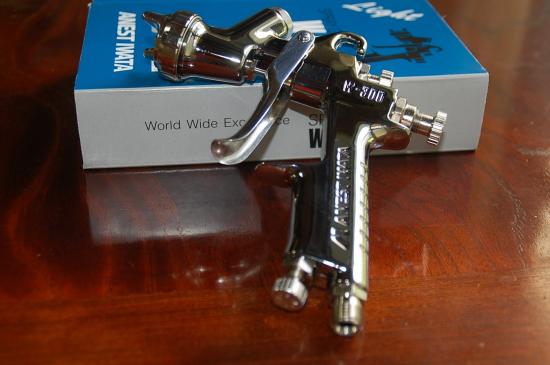

ANEST IWATA W-300 081 101 132G without cup

Item specifics
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging
Part Brand: Iwata
Country of Manufacture: Japan Manufacturer Part Number: Japan

ANEST IWATA W-300 081 101 132G without cup

Choose type and nozzle size
Features
We have reduced both overspray and triggering load by reducing atomizing air pressure (at gun inlet) by 0.05MPa.
Specifications
Model
Item W-300-081G W-300-101G W-300-132G
Type of feed Gravity
Nozzle orifice
(mm) 0.8 1.0 1.3
Atomizing air pressure
(MPa)
0.24
Air pressure inside air cap
(MPa)

• • -
    Air consumption
    (L/min) 80 145 225
    Output
    (mL/min) 60 100 160
    Pattern width
    (mm) 100 130 175
    High atomization
    General atomization

Applied air cap model E1 K1 H2
Required air compressor
(kW) 0.4 0.75 0.4 0.75 0.75 1.5
Mass
(g) 320
Applications Light industry, Hobby Automotive refinishing, woodwork, furniture, metal, plastic
Spray distance: 250mm
Paint viscosity: 22sec.(20sec/NK-2)
Fluid nipple: G 1/4(female), Air nipple: G 1/4
