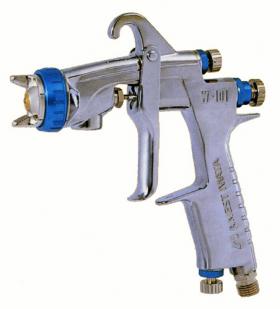

IWATA Spray Gun W-101-;W-101-134BPG ,W-101-142BPG,W-101-162BPG

Lineup of spray guns for automotive refinishing.
These spray guns do not spray uneven film thickness(spray stripes).
(gold): W-101-134BPG:exclusive spray guns for metallic and pearl paints.
(silver): W-101-142BPG:exclusive spray guns for solid clear paints.

Model
Item W-101-134BPG W-101-142BPG
type of feed gravity gravity
fluid nozzle orifice mm
1.3 *2 1.4
atomizing air pressure
MPa *1 0.2 0.24
air consumption L/min
160 230
fluid output mL/min
140 200
pattern width mm
250 270
high atomization
general atomization
applied air cap model BP4 BP2
required air compressor kW
1.5 1.5
mass g
295
application metallic/pearl paints solid clear paints
*1.Atomizing air pressure is pressure at gun inlet when air flows with trigger pulled.
*2. W-101-134BPG is assembled with special fluid nozzle.
All models: fluid nipple G1/4, air nipple G1/4.
Fluid viscosity is 12 sec/NK-2 for automotive refinishing paints.

Model

Item
W-101-162BPG
type of feed
gravity
fluid nozzle orifice mm

1.6
atomizing air pressure
MPa 1
0.202 0.24*3
air consumption L/min

210 230
fluid output mL/min

120 195
pattern width mm

170 200
high atomization

general atomization
applied air cap model
162
BP2
required air compressor kW

1.5
mass g

295
application
for primer, surfacer
*1.Atomizing air pressure is pressure at gun inlet when air flows with trigger pulled.
*2.Paint viscosity is 40 sec/NK-2 when primer and surfacer are used.
*3.Paint viscosity is 20 sec/NK-2.
All models: fluid nipple G1/4, air nipple G1/4.
Fluid viscosity is 12 sec/NK-2 for automotive refinishing paints.
