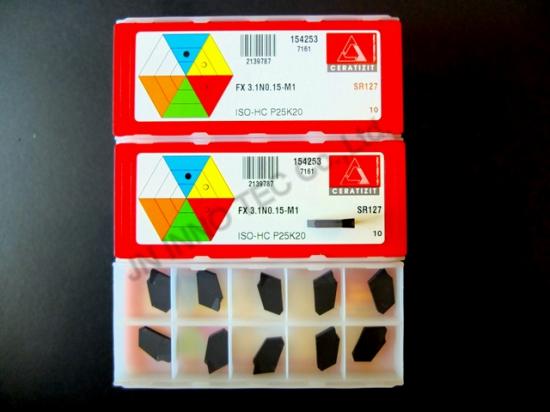

FX3.1N0.15-M1 SR127 เม็ดมีดเซาะร่อง หน้ากว้าง 3.1mm
Chip groove -M1
Application range:
insert with narrow negative chamfer
suitable for all steel materials with high strength
suitable for all applications for steel and grey cast iron
Grade SR127
HC-P25
HC-M20
HC-K20
Composition:
Co 6.0%; composite carbides 0.6%; WC rest
Grain size:
2 µm
Hardness:
HV 1460
Coating specification:
CVD
Ti(C,N) + TiN + Al2O3; 12 µm
Properties, application:
• Wide range of applications (steel and cast iron)
• Excellent resistance to oxidation
• Good toughness
• High wear resistance
