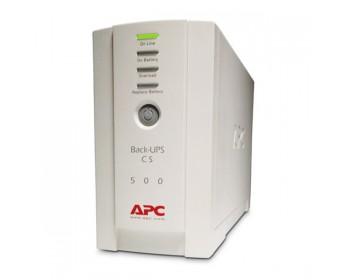

APC Back-UPS 500VA, 230V (QAL001)
P/N : BK500Ei
Output
Output power capacity 300 Watts / 500 VA
Max Configurable Power (Watts) 300 Watts / 500 VA
Nominal Output Voltage 230V
Output Frequency (sync to mains) 47 - 63 Hz
Output Frequency (not synced) 50/60 Hz +/-1 Hz
Topology Standby
Waveform type Stepped approximation to a sinewave
Output Connections (1) IEC 320 C13 (selector_surgetitle) (3) IEC 320 C13 (Battery Backup)
Transfer Time 6ms typical : 10ms maximum
Input
Nominal Input Voltage 230V
Input frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections IEC-320-C14 inlet
Cord Length 1.83 meters
Input voltage range for main operations 180 - 266 V
Input voltage adjustable range for mains operation 160 - 300 V
Number of Power Cords 2
Maximum Input Current 7.0 A
Batteries & Runtime
Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 8 hour(s)
Replacement Battery RBC2
RBC Quantity 1
Battery Volt-Amp-Hour Capacity 83
Communications & Management
Interface Port(s) n/a (Optional: Simple Signalling RS232 cable , USB)
Control panel LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating 310 Joules
Data Line Protection Analog phone line for phone/fax/modem/DSL (RJ-45 connector)
Filtering Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height 165 , 16.5 cm
Maximum Width 91 , 9.1 cm
Maximum Depth 284 , 28.4 cm
Net Weight 6.32 kg
Shipping weight 7.05 kg
Shipping Height 178 , 17.8 cm
Shipping Width 241 , 24.1 cm
Shipping Depth 368 , 36.8 cm
Color Beige
Master Carton Units 1.0
Units per Pallet 48.0
SCC Codes 107 31304 01635 6
Includes: CD with software, Documentation CD, Qty 1 - Detachable 1.2 m IEC power cord, Qty 1 - Detachable 1.8 m IEC power cord, Telephone Cable, USB cable, Warranty card
