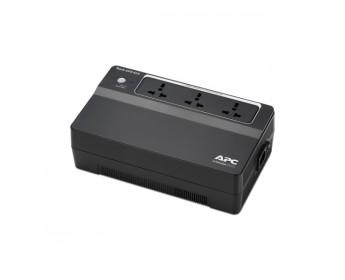

APC Back-UPS 625VA, 230V, AVR, (APC042)
P/N : BX625CI-MS
Output
Output power capacity 325 Watts / 625 VA
Max Configurable Power (Watts) 325 Watts / 625 VA
Nominal Output Voltage 230V
Efficiency at Full Load 65.3 %
Output Frequency (not synced) 50/60 Hz +/-1 Hz
Topology Line Interactive
Waveform type Square wave
Output Connections (3)
Universal Receptacle (Battery Backup)
Transfer Time 4ms typical : 8ms maximum
Input
Nominal Input Voltage 230V
Input frequency 45 - 65 Hz
Input Connections IEC-320 C14
Cord Length 1.22 meters
Input voltage range for main operations 151 - 299 V
Number of Power Cords 1
Efficiency at Full Load 65.3 %
Type of Input Protection Required 3-pole breaker
Maximum Input Current 3.0 A
Batteries & Runtime
Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules 1
Typical recharge time 6 hour(s)
Replacement Battery APCRBC110
Battery Volt-Amp-Hour Capacity 65
Extended Run Options APC-Back-UPS-625VA-230V-AVR-Floor-Universal-Sockets
Surge Protection and Filtering
Surge energy rating 273 Joules
Physical
Maximum Height 278 , 27.85 cm
Maximum Width 160 , 16.0 cm
Maximum Depth 88 , 8.85 cm
Net Weight 5.0 kg
Shipping weight 5.2 kg
Shipping Height 399 , 39.9 cm
Shipping Width 215 , 21.5 cm
Shipping Depth 128 , 12.8 cm
Color Black Master Carton Units 1.0
Units per Pallet 100.0
SCC Codes 1073130430817 8
