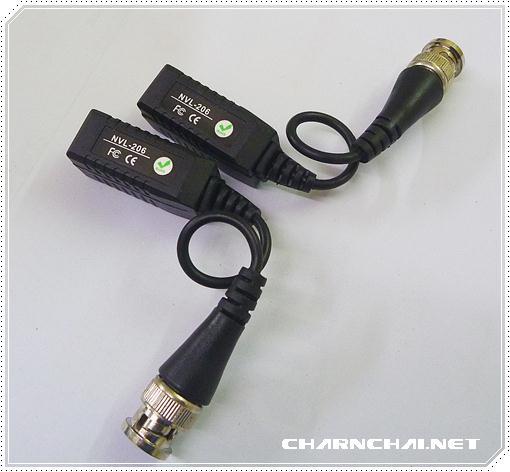

CCTV Via Twisted Pairs Passive UTP Video Transmission
1) Fulll-motion CCTV video at distances up to 330m when used with any passive transceiver
2) Up to 1500m with any active UTP Video receiver
3) "Press-Fit" terminal block
4) NTSC, PAL, and SECAM video formats
5) No power required
6) 60dB crosstalk and noise immunity
7) Compact size and easy installation
Technical Specifications:
1) Frequency response: DC to 8MHZ
2) Attenuation: 0.5dB typ
3) Impedance: BNC:75 ohms, CMRR: 60dB
Terminal: 100 ohms
4) Working Temperature: -10 °C to + 70°C
5) Storage Temperature: -30 °C to + 70°C
6) Humidity: 0 to 95%
