ขาย HOOSIWELL 000300

ข้อกำหนด คุณลักษณะของสินค้า (Specification):

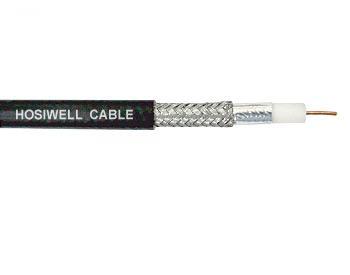

Product Description
Conductor : No/mm : 1/0.80
Mtrl. : BC
Insulation : O.D. (mm.): 3.68
Mtrl. : Gas Injection Foam PE
Shield : 95% BC Braid
Jacket : O.D. (mm.): 6.15
Mtrl. : PVC
Nom. Capa. (Ω): 75
Nom. Capa. (pF/m.): 53.1
Nominal Velocity of Propagation: 85%. LSZH jacket optional
Standard Attenuation @20°C (dB/100m)
Frequency F/RG59/U F-RG6/U F-RG-11/U
1 MHz 1.0 1.0 0.6
10 MHz 3.0 2.3 1.1
50 MHz 6.2 4.9 3.0
100 MHz 8.5 6.6 4.3
200 MHz 11.8 9.2 6.2
400 MHz 16.4 13.1 9.5
700 MHz 23.0 17.4 13.5
900 MHz 26.3 20.0 15.7
1000 MHz 27.9 21.3 17.1

Standard: UL 758 type 1354, 1365, 1478, 1792
