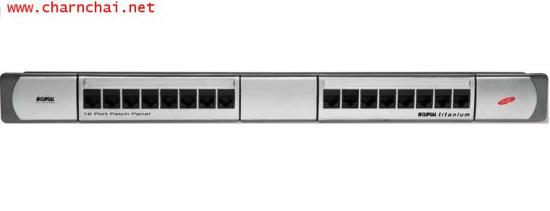

ขาย CLIPSAL Category 6 & 6+16-Port & 24-Port Patch Panels

The Clipsal Datacomms Clipsal Titanium® range of products are the next
generation of data communications solutions. The Category 6 Patch Panels
are a perfect combination of sleek looks and outstanding performance.
The 24 individual Category 6 Keystone modular jacks incorporate Lead
Frame Technology, eliminating possible PC Board failures, improving
consistency in performance, and exactly matching the work area outlets.
These modular jacks are colour coded for both 568A and 568B standards
and can be terminated using a Clipsal GigaPRO or Krone tool. Clear wire
retaining caps are supplied and can be used to provide additional cable
strain relief.
The sleek silver face of the product comprises three designation strip holders
with a label kit supplied. Velcro cable ties, cage nuts and screws are also
provided with the product.
Combined with other Clipsal Titanium® or Professional Series Products, they

are the perfect solution to your voice and data communications needs.
E L E C T R I C A L C H A R A C T E R I S T I C S
Dielectric Strength 1,000V RMS at 60Hz for 1 minute
Current Rating 1.5Amp maximum
Insulation Resistance 200mΩ minimum
Contact Resistance 1mΩ per contact
Temperature Range -40˚C to +70˚C
Transmission Performance exceeds ISO/IEC 11801 Class E
AS/NZS 3080:2003 Class E
M E C H A N I C A L C H A R A C T E R I S T I C S
Modular Connector
RJ45 8-Pin Connector FCC part 68, Subpart F and IEC-60603-7 compliant
Durability 1,000 mating cycles
Material Phosphor bronze with 50 micro-inches of
gold over 100 micro-inches nickel plating
IDC Connector
IDC Connector Insulation slicing of 22 to 24 AWG (0.64mm to 0.41mm)
Insulation Diameter (Wire) 0.70mm - 1.40mm
Connector Material Phosphor bronze with nickel plating
IDC Body & Cover Material Fire-Retardant, UL 94V-0, Plastic
P R O D U C T F E AT U R E S
• aesthetic, contemporary design.
• lead Frame Technology eliminates the possibility of PC Board
failures
• powder coated metal framework
• universal colour-coding for 568A and 568B standards
• removable rear cable management tray.
• compatible with standard 19” equipment frames
• IDC termination using a Clipsal GigaPRO or Krone tool
• fully compliant to AS/NZS 3080:2003, ISO/IEC 11801
Edition 2 2002 and ANSI/TIA/EIA-568-B Series Connecting
Hardware Standards.
C U S T O M E R B E N E F I T S
