Featured Data:

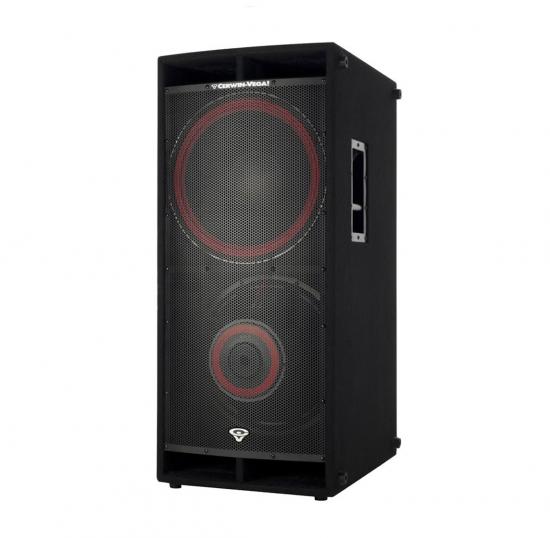

• Model - CVi-218S
• System Configuration - Dedicated subwoofer
• Connections - 2 ea.—¼" Phone Jack and Neutrik Speakon
• Low Frequency System - Dual Reflex loaded 18" transducer
• High Frequency System - N/A
• Enclosure Type - Vented, polygon
• Enclosure Structure - 18mm OSB, internal bracing
• External Covering - Black polypropylene fiber
• Grille Material - 18 gauge black powder coated steel
Performance Data:
• Frequency Response - +/- 3 dB 51 Hz - 200 Hz
• Operating Range - -10 dB 36 Hz
• Nominal Impedance (Ohms) - Full Range 4 Ohms
• Axial Sensitivity (dB SPL, 1W / 1M) - Full Range 100.5 dB
• Calculated Maximum Output (dB SPL, @ 1M) - Full Range 134 dB
• Power Handling (Watts) - RMS 600 W / Program 1200 W / Peak 2400 W
• Nominal Directivity / -6dB points (Degrees) - Horizontal: N/A / Vertical: N/A
• Weight 150 Lbs. (68 Kg)
• Dimensions (HxWxD) 46.50" (1181mm) x 20.75" (527mm) x 26.75" (679mm)
