Featured Data:

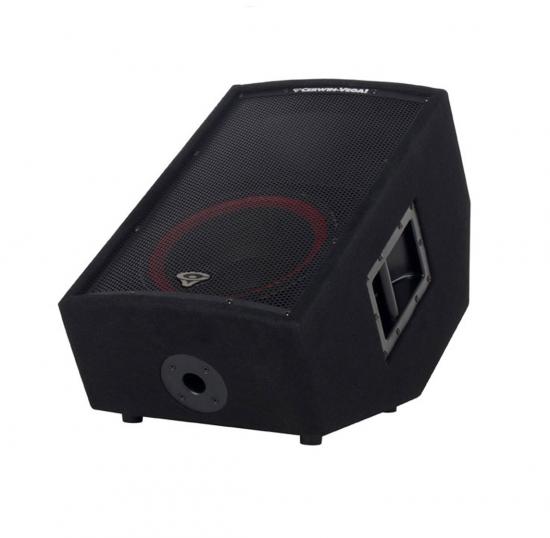

• Model - CVi-122M
• System Configuration - 2-Way stage monitor
• Connections - 2 ea.—¼" Phone Jack and Neutrik Speakon
• Low Frequency System - Reflex loaded 12" transducer
• High Frequency System - 1 inch exit 80° H x 50° V
• Enclosure Type - Vented, wedge
• Enclosure Structure - 18mm OSB, internal bracing
• External Covering - Black polypropylene fiber
• Grille Material - 18 gauge black powder coated steel
Performance Data:
• Frequency Response - +/- 3 dB 69 Hz—16 kHz
• Operating Range - -10 dB 53 Hz—20 kHz
• Nominal Impedance (Ohms) - Full Range 8 Ohms
• Axial Sensitivity (dB SPL, 1W / 1M) - Full Range 98 dB
• Calculated Maximum Output (dB SPL, @ 1M) - Full Range 128 dB
• Power Handling (Watts) - RMS 250 W / Program 500 W / Peak 1000 W
• Nominal Directivity / -6dB points (Degrees) - Horizontal: 80° / Vertical: 50°
• Weight 47 Lbs. (21.3Kg)
• Dimensions (HxWxD) 20.5" (521mm) x 15.75" (400mm) x 25.25" (641mm)
