Featured Data:

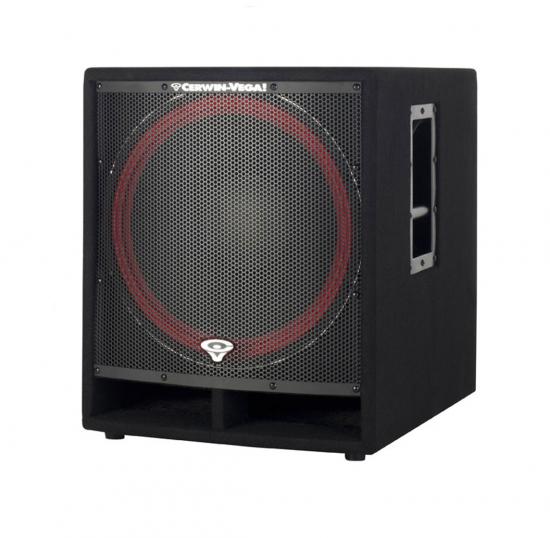

• Model - CVi-118S
• System Configuration - Dedicated subwoofer
• Connections - 2 ea. - ¼" Phone Jack and Neutrik Speakon
• Low Frequency System - Reflex loaded 18" transducer
• High Frequency System - N/A
• Enclosure Type - Vented, polygon
• Enclosure Structure - 18mm OSB, internal bracing
• External Covering - Black polypropylene fiber
• Grille Material - 18 gauge black powder coated steel
Performance Data:
• Frequency Response - +/- 3 dB 45 Hz - 200 Hz
• Operating Range - -10 dB 32 Hz
• Nominal Impedance (Ohms) - Full Range 8 Ohms
• Axial Sensitivity (dB SPL, 1W / 1M) - Full Range 95 dB
• Calculated Maximum Output (dB SPL, @ 1M) - Full Range 126 dB
• Power Handling (Watts) - RMS 300 W / Program 600 W / Peak 1200 W
• Nominal Directivity / -6dB points (Degrees) - Horizontal: N/A / Vertical: N/A
• Weight 79.5 Lbs. (36.1Kg)
• Dimensions (HxWxD) 24.25" (616mm) x 20" (508mm) x 24.75" (629mm)
