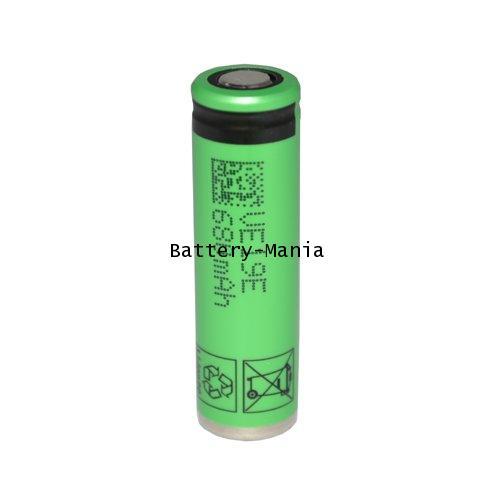

Sony Li-Ion battery US14500VR2 3,6V, 680mAh

หากมีการ​แก้ไข​ ดัดแปลงผิดไปจากเดิ​ม​ ไม่รับเปลี่ยนทุกกรณี​

Sony 14500 lithium ion single cell

higher energy density
low self-discharge
lightness
high energy efficiency
AA/Mignon Li-Ion
Purpose:

various industrial applications
Safety note: Please note that lithium cells may be used only by authorized experts. Improperly handling or short circuit may result in fire or explosion.

Lithium-ion batteries have no memory effect. They operate on the basis of lithium and are characterized by a high energy density.

Technical details:
Size: 14500 round cell
System: Lithium-ion (Li-ion)
Voltage: 3,6 Volt
Capacity: 680mAh
Energy: max. 2,45 Wh
Dimension: 14x50
Color: green
Weight: 19 gramm
Manufacturer: Sony
EAN-Code: 9009316321220

Official specifications:

Nominal capacity: 680mAh
Minimum capacity: 640mAh
Nominal voltage: 3,7V
Charge voltage: 4,2V
Cut-off voltage: 2,5V
Max. discharge current: 5A
Charge current: 0,25A - 0,5A
Maximal charge current: 0,7A
Diameter: 13,95mm ± 0,1
Height: 49,05mm ± 0,1
Weight: 22g ± 1

Product Advantages:
1) Green product
2) Long standby time
3) 6 months warranty
4) Excellent safety performance
5) Excellent storage performance and low self-discharge rate
6) Short circuit testing passed
7) Overcharge testing passed
8) Over discharge testing passed

Applications:
Audio visual equipment
Cellular phones
Office automation
Notebook PC's
PDA's and handy terminals
Digital camera,
Electric bike battery pack and other battery packs
Other devices

Features:
High Capacity and Stable Discharge Voltage
Light weight, small size and high performance
Small internal resistance
Outstanding Discharge properties and Storage Capacity
Pollution free, long cycle life
No memory effect
Existing stock for short delivery time.
Factory price, high quality

Cautions:
1. When using the application equipped with the battery, refer to the user’s manual before usage.
2. Please read the specific charger manual before charging.
3. Charge time should not be longer than specified inthe manual.
4. When the cell is not charged after long exposure to the charger, discontinue charging.
5. Battery must be charged at operating temperature range 0 ~ 45°C.
6. Battery must be discharged at operating temperature range -20 ~ 60°C.
7. Please check the positive(+) and negative(-) direction before packing.
8. When a lead plate or wire is connected to the cellfor packing, check out insulation not to short-circuit.
9. Battery must be stored separately.
10.Battery must be stored in a dry area with low temperature for long-term storage.
11.Do not place the battery in direct sunlight or heat.
12.Do not use the battery in high static energy environment where the protection device can be damaged.
13.When rust or smell is detected on first use, please return the product to the seller immediately.
14.The battery must be away from children or pets
15.When cell life span shortens after long usage, please exchange to new cells.

Quality Guarantee:
Power-Wholesale Website is committed to providing you with authentic 14500 lithium-ion batteries. Every battery sold was tested strcitly and of the highest quality.
We only sell authentic Li-Ion batteries.
The authentic 14500 batteries are well inspected.

Price:
We totally understand the price is crucial to a wholesaler, so we will do our best to maximize your profits.
We won’t ensure you our price is lowest but we ensure you what you paid is the price for authentic rechargeable Li-ion batteries.
