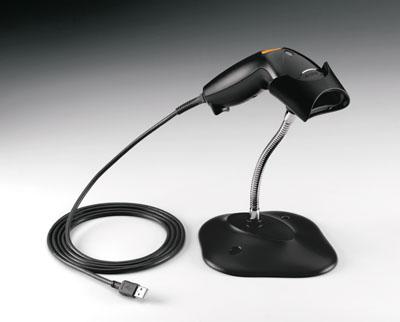

เครื่องอ่านบาร์โค้ด LS1203 handheld scanner
The LS1203 handheld scanner is ideal for gift shops, boutiques, video, sporting goods stores, jewelers, florists and more. Easy to use, it delivers high quality laser scanning at an affordable price. Delivers the features, functionality and reliability needed to improve operational efficiencies from the checkout line to the back room Minimizes manual keying Ensures that customers are charged the correct amount Automates paper-based inventory processes Integrated multiple interfaces help ensure connectivity to host and PC systems now and in the future
Symbol LS1203 General Purpose Bar Code Scanner
This bi-directional LS1203 handheld scanner handles all 1D bar codes and is ideal for small retailers. It delivers the functionality, features and reliability needed to improve operational efficiencies from the check-out line to the storeroom. It minimizes manual keying — ensuring accuracy in all customer transactions — and it automates paper-based inventory processes. The device easily integrates multiple interfaces to help ensure connectivity to a host and PC system.
Durable, single-board construction
Meets 5-ft drop tests, significantly reducing downtime and repair costs.
Multiple interfaces: RS232, USB, keyboard wedge (KBW) in one scanner
Simplifies installation and integration, ensuring future compatibility.
Sleek, lightweight, ergonomic design
Maximizes comfort for all-day use.
Intuitive scanning and plug-and-play capability
Minimizes setup and training time.
Choice of triggered or continuous mode
Ensures versatile, accurate first-time scanning.
Durable, single-board construction
Meets 5-ft drop tests, significantly reducing downtime and repair costs.
Multiple interfaces: RS232, USB, keyboard wedge (KBW) in one scanner
Simplifies installation and integration, ensuring future compatibility.
Sleek, lightweight, ergonomic design
Maximizes comfort for all-day use.
Intuitive scanning and plug-and-play capability
Minimizes setup and training time.
Choice of triggered or continuous mode
Ensures versatile, accurate first-time scanning.
PHYSICAL CHARACTERISTICS
Color Twilight black, Cash register white
Corded Yes
Dimensions 2.4 in. H x 7.1 in. L x 2.4 in. W(6.2 cm H x 18 cm L x 6 cm W)
Handheld Yes
Power source Host power or external power supply; depends on host type
Voltage and current1 5 +/-10%VDC @ 100 mA (Stand by: <35 mA)
Weight Approximately 4.3 oz. / 122 g (without cable)
PERFORMANCE CHARACTERISTICS
Decode capability 1D, See data sheet for full list of supported symbologies
Depth of field From contact to 8 in./20.32 cm on 100% UPC/EAN symbols
Interfaces supported RS-232, USB, Keyboard wedge
Minimum resolution2 30% minimum reflectance
Pitch3 ± 65°
Roll (Tilt) 4 ± 30° from normal
Scan pattern Single line
Skew (Yaw)5 ± 60°
Technology Laser
NOTICES AND DISCLAIMERS
Notices and Disclaimers6 See footnote.
REGULATORY SPECIFICATIONS
EMC FCC Part 15 Class B, ICES 003 Class B
Electrical Safety UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1
Environmental RoHS Directive 2002/95/EEC
Laser Safety7 IEC 60825-1, 21CFR1040.10, EN 60825-1
USER ENVIRONMENT
Ambient light immunity Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight
Drop specifications Withstands multiple 5 ft./1.524m drops to concrete
Operating temperature 32° to 122° F/0° to 50° C
Storage temperature -40° to 158° F/-40° to 70° C
WARRANTY
Scanner warranty 3 years (36 months) from date of shipment. The Liquid Polymer Scan Element includes a limited lifetime warranty. See full warranty for details.
1 Does not include cable.
2 Refers to 100% UPC bar code (80% contrast) located 4 in./10 cm. from the scanner nose.
3 Pitch: Controlled by dropping or raising the wrist
4 Roll (Tilt): Controlled by rotating the wrist clockwise or counterclockwise
5 Skew (Yaw): Controlled by rotating the wrist from left to right or vice versa
6 Specifications are subject to change without notice.
NOTICE: Repairs of this product may require the use of Motorola proprietary parts (and/or Motorola proprietary information). Motorola will sell these parts (and provide this proprietary information) only to end-user customers for self-service. It is Motorola's policy not to sell these parts to third-party service providers and not to allow a third-party service provider to act as an ordering or receiving agent for the parts necessary to repair this product. Applicable in the U.S. For all other countries, please contact your Motorola account manager or the local Motorola Customer Service representative in your area for further details.
