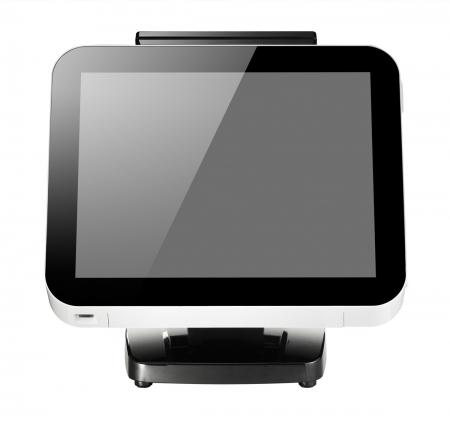

POS Systems POS-9000 Full-Flat Touch Screen POS Terminal Intergrated 15 inch POS System
．Variety of CPU Selectable For Cost-Effective Solutions (Atom Dual/ Core Duo/ Core 2 Duo / Core-i3/i5/i7)
．15 inch Full Flat Touch Screen LCD Display
．DDR 3 RAM Module support (POS-9000-D5/POS-9000-i)
Color: Black, White, Orange, and customized color available
．High Capacity RAM Expandable (1~16GB)
．Low Noise System with Smart Fan to Ensure Quiet and Steady Operation
．Gigabit LAN Ports ．Versatile I/O support: USB 3.0 / USB 2.0 / RS-232 / RJ-11 / RJ-45...etc
．Intergrated Magnettic Stripe Card Reader/ i-Button Module (optional)
．Internal Cable Routing Base Design Ideal for Small Workplace Operation
．Optional Customer Display/2nd VGA Displays
．Hidden Power Adapter Design
Model POS-9000-D5 POS-9000-CD POS-9000-i
CPU Intel Atom D525
Dual Core
(1.8GHz , 1MB Cache) Intel Core 2 Duo T7400
(2.16GHz , 4M Cache, 667M FSB)
Intel Core Duo T2500
(2GHz , 2M Cache , 667M FSB)
Intel Celeron M 440
(1.86GHz , 1M Cache, 533M FSB)
3rd Generation Intel® CoreTM processors
(22nm process technology)
Intel® Core™ i7-3610QE
(6M Cache, up to 3.3 GHz); 45W
Intel® Core™ i5-3610ME
(3M Cache, up to 3.3 GHz); 35W
Intel® Core™ i3-3120ME
(3M Cache, 2.4 GHz); 35W
2nd Generation Intel® CoreTM processors
(32nm process technology)
Intel® Core™ i7-2710QE
(6M Cache, up to 3.0 GHz); 45W
Intel® Core™ i5-2510E
(3M Cache, up to 3.1 GHz); 35W
Intel® Core™ i3-2330E
(3M Cache, 2.2 GHz); 35W
System Memory 2 x 204pin DDR3
SODIMM Socket , up to 4GB 2 x 200pin DDR2, 533/667MHz
SODIMM Socket , up to 4GB 2 x 204 pin DDR3 SO-DIMM Socket
1333MHz, up to 16GB
OS Support POS Ready 2009, POS Ready 7, Windows XP Pro, Vista, Windows 7, Linux
HDD Storage 1x 2.5" SATA
Compact Flash 1 x Slot Type I II, Non-removable 1 x CFast Slot for SATAI / SATA II
Display TFT LCD, 250 nits, 1024 x 768 Pixel
Touch Flat 5 Wire Resistive Type
Tilting Angle 15°~80°
Power Input 12VDC 90W,4-pin Connector with Lock
(External Adaptor: 100~240 VAC, 50/60HZ)
Weight 6.6 Kg
Dimension (mm) 374(W) x 335(H) x 245(D) mm
Compliance FCC / CE / WEEE / RoHS
Interface 2 x COM with Power Selected 5/12V,
1 x COM without Power Output 4x COM (3 x DB9 , 1x RJ45
with power output, 5/12V selectable)
1 x DB25 Parallel Port ---
6 x USB 2.0 (External),
2 x USB 2.0 (Internal, 1 reserved for touch screen) 2 x USB3.0 (External),
4 x USB2.0 (External),
3 x USB 2.0 (Internal, reserved for
touch screen, Wi-Fi, and MSR)
1 x PS/2 Mouse, 1 x PS/2 Keyboard 1 x mini-DIN-6 mixed PS/2
(for PS/2 Keyboard/Mouse•)
1 x DB-15, VGA Port
1 x 12VDC In, 1 x 12VDC Out
1 x RJ-45 Giga LAN 2 x RJ-45 Giga LAN 1 x RJ-45 Giga LAN
1 x RJ-11, 12/24 VDC Selectable
1 x Audio Line Out, 1 x MIC In, 2 x Internal Speaker 2W
1 x Mini PCIe(Internal) --- ---
