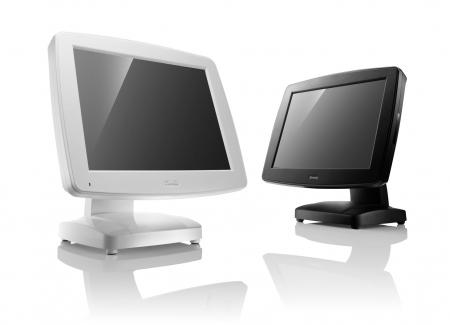

POS-3100 (Zenis-SAW) Zenis POS SAW SAW Touch Model For Zenis POS Anti-Scratch Surface Acoustic Wave Touch PanelThe stylish POS-3100 features the anti-scratch Surface Acoustic Wave (SAW) touch panel which ensures fast and accurate responses during the 24/7 operation. It is a value-added POS terminal with numerous processor options, ranging from Celeron M, Intel Atom, Core Duo to Core 2 Duo. The front bezel has a matte texture, and offers a refined look to the POS-3100 compared to the shiny, gloss finished POS-3000. The spill-proof design also ensures years of use and enhances durability of the exquisite POS terminal.
Model POS-3100-AT POS-3100-D5 POS-3100-CD
CPU Intel Atom N270
(1.6GHz , 512KB Cache, 533MHz FSB) Intel Atom D525 Dual Core
(1.8GHz , 1MB Cache)
Intel Core 2 Duo T7400
(2.16GHz , 4M Cache, 667M FSB)
Intel Core Duo T2500
(2GHz , 2M Cache , 667M FSB)
Intel Celeron M 440
(1.86GHz , 1M Cache, 533M FSB)
System Memory 1 x 200pin DDR2
533/667MHz SODIMM Socket , up to 2GB 2 x 204pin DDR3
SODIMM Socket , up to 4GB 2 x 200pin DDR2
533/667MHz SODIMM Socket , up to 4GB
OS Support POS Ready 2009, POS Ready 7, Windows XP Pro, Vista, Windows 7, Linux
HDD Storage 1x 2.5" SATA
Compact Flash 1 x Slot Type I II, Non-removable
Display TFT LCD, 250 nits, 1024 x 768 Pixel
Touch Surface Acoustic Wave (SAW) Type
Tilt Angle 15°~80°
Power Input 12VDC 90W,4-pin Connector with Lock
(Externel Adaptor: 100~240 VAC, 50/60HZ)
Weight 7.3 Kg
Dimension (W x D x H: mm) 385 x 245 x 360
Compliance FCC / CE / WEEE / RoHS
Interface 2 x COM with Power Selected 5/12V, 1 x COM without Power Output
1 x DB25 Parallel Port
6 x USB 2.0 (External), 2 x USB 2.0 (Internal, 1 reserved for touch screen)
1 x PS/2 Mouse, 1 x PS/2 Keyboard
1 x DB-15, VGA Port
1 x 12VDC In, 1 x 12VDC Out
1 x RJ-45, Giga LAN Support 2 x RJ-45, Giga LAN Support
1 x RJ-11, 12/24 VDC Selectable
1 x Audio Line Out, 1 x MIC In, 2 x Internal Speaker 2W
