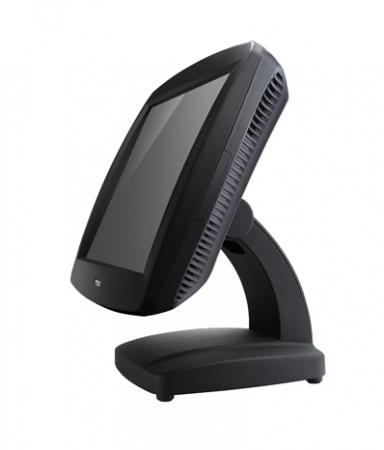

Zenis POS Matte Zenis POS Matte FinishFor those who find Zenis POS is too glossy to suit the nature of their business and prefer the matte finish over the original gloss, this is the POS terminal of their choice.
Specification
Model POS-3100-AT POS-3100-D5 POS-3100-CD
CPU Intel Atom N270
(1.6GHz , 512KB Cache, 533MHz FSB) Intel Atom D525 Dual Core
(1.8GHz , 1MB Cache)
Intel Core 2 Duo T7400
(2.16GHz , 4M Cache, 667M FSB)
Intel Core Duo T2500
(2GHz , 2M Cache , 667M FSB)
Intel Celeron M 440
(1.86GHz , 1M Cache, 533M FSB)
System Memory 1 x 200pin DDR2
533/667MHz SODIMM Socket , up to 2GB 2 x 204pin DDR3
SODIMM Socket , up to 4GB 2 x 200pin DDR2
533/667MHz SODIMM Socket , up to 4GB
OS Support POS Ready 2009, XP Pro, Vista, Linux, Windows 7
HDD Storage 1x 2.5" SATA
Compact Flash 1 x Slot Type I II, Non-removable
Display TFT LCD, 250 nits, 1024 x 768 Pixel
Touch Surface Acoustic Wave (SAW) Type
Tilt Anle 15°~80°
Power Input 12VDC 90W,4-pin Connector with Lock
(Externel Adaptor: 100~240 VAC, 50/60HZ)
Weight 7.3 Kg
Dimension (W x D x H: mm) 385 x 360 x 245
Compliance FCC / CE / WEEE / RoHS
Interface 2 x COM with Power Selected 5/12V, 1 x COM without Power Output
1 x DB25 Parallel Port
6 x USB 2.0 (External), 2 x USB 2.0 (Internal, 1 reserved for touch screen)
1 x PS/2 Mouse, 1 x PS/2 Keyboard
1 x DB-15, VGA Port
1 x 12VDC In, 1 x 12VDC Out
1 x RJ-45, Giga LAN Support 2 x RJ-45, Giga LAN Support
1 x RJ-11, 12/24 VDC Selectable
1 x Audio Line Out, 1 x MIC In, 2 x Internal Speaker 2W
