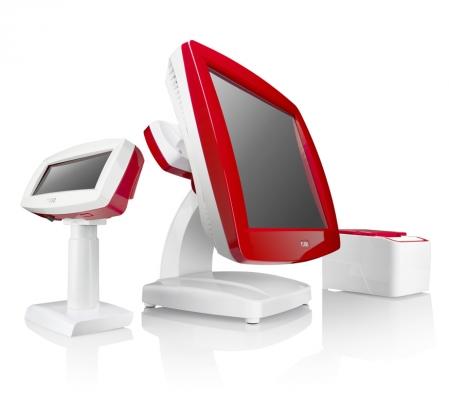

Zenis POS-i New Core-i CPU Support POS Terminal Energy/Performance balance Core-i POS Terminal
．Noble and Graceful Colors Available (Red /White/Black))
．Energy/Performance balance CPU Selectable (Core i3/i5/i7)
．High Capacity Ram Expansion: DDR3 1-16G
．Low Noise System with Smart Fan to Ensure Quiet and Steady Operation
．Dual Gigabit LAN Ports
．Versatile I/O support: USB 3.0 / RS-232 / RJ-11 / RJ-45...etc.
．Water Spill Proof Front Bezel
．Internal Cable Routing Base Design Ideal for Small Workplace Operation
．Optional MSR/Customer Display/2nd LCD Displays
．Hidden Power Adapter Design
．Space-saving and Easy maintenance
Model POS-3000-i
CPU
3rd Generation Intel® CoreTM processors (22nm process technology)
Intel® Core™ i7-3610QE (6M Cache, up to 3.3 GHz); 45W
Intel® Core™ i5-3610ME (3M Cache, up to 3.3 GHz); 35W
Intel® Core™ i3-3120ME (3M Cache, 2.4 GHz); 35W
2nd Generation Intel® CoreTM processors (32nm process technology)
Intel® Core™ i7-2710QE (6M Cache, up to 3.0 GHz); 45W
Intel® Core™ i5-2510E (3M Cache, up to 3.1 GHz); 35W
Intel® Core™ i3-2330E (3M Cache, 2.2 GHz); 35W
System Memory 2 x 204 pin DDR3 SO-DIMM Socket ,1333MHz, up to 16GB
OS Support POS Ready, XP Pro, Vista, Linux, Windows 7
HDD Storage 1x 2.5" SATA
Compact Flash 1 x CFast Slot for SATAI / SATA II
Display TFT LCD, 1024 x 768 Pixel
Size 15"
Brightness 250 nits
Tilt Angle 15°~80°
Power Input +12VDC/ 90W,4-pin Connector with Lock
(Adaptor: 100~240VAC, 50/60Hz)
Weight 7.3 Kg
Dimension (mm)
385 x 245 x 360
Cpmpliance FCC / CE / WEEE / RoHS
Interface 4x COM (3 x DB9 , 1x RJ45 with power output, 5/12V selectable)
2 x USB3.0 (External),
4 x USB2.0 (External),
3 x USB 2.0 (Internal, reserved for touch screen, Wi-Fi, and MSR)
1 x mini-DIN-6 mixed PS/2 (for PS/2 Keyboard/Mouse•)
1 x RJ-45, Giga Lan Support
1 x DB-15, VGA Port
1 x 12VDC In, 1 x 12VDC Out
1 x RJ-11, 12/24 VDC Selectable
1 x Audio Line Out, 1 x Mic In, 2 x Internal Speaker 2W
