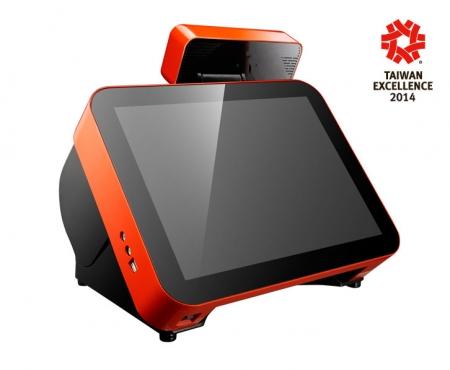

Zircon POS POS Systems Full-Flat All-In-One Touchscreen POS The Zircon POS (POP-950) seris is a multi-functional, fully integrated all-in-one POS system indended to meet the needs of different market segments. It consists of a pos terminal (equipped with various Energy/Performance balance CPUs (Core i3/i5/i7), a high-speed 250mm/sec thermal receipt printer and a dual-line vacuum fluorescent customer pole display.
The Zircon POS supplies a 15 inch full flat touch screen LCD monitor to provide its user a better viewing experience and optimal spill proof performance. The i-button and magnetic stripe card reader (MSR) are also embedded seamlessly into the housing for higher-level operation.
．Energy/Performance balance CPU Selectable (Core i3/i5/i7)
．DDR3 RAM module (up to 16G)
．Spill-Proof Full-Flat Touch Screen LCD monitor
．Smart Fan Cooling System
．High-Speed 250 mm/sec thermal receipt printer
．Pole type VFD customer display (700 cd/m2)
．Embedded MSR and i-Button
．Gigabit LAN Port
．Versatile I/O support: USB 3.0 (POP-950-i)/ USB 2.0 / RS-232 / RJ-11 / RJ-45...etc.
．Space-saving and Easy maintenance
Model POP-950-D5 POP-950-CD POP-950-i
CPU Intel Atom D525
Dual Core
(1.8GHz , 1MB Cache) Intel Core 2 Duo T7400
(2.16GHz , 4M Cache, 667M FSB)
Intel Core Duo T2500
(2GHz , 2M Cache , 667M FSB)
Intel Celeron M 440
(1.86GHz , 1M Cache, 533M FSB)
3rd Generation Intel® CoreTM processors
(22nm process technology)
Intel Core i7-3610QE
(6M Cache, up to 3.3 GHz)
Intel Core i5-3610ME
(3M Cache, up to 3.3 GHz)
Intel Core i3-3120ME
(3M Cache, 2.4 GHz
2nd Generation Intel CoreTM processors
(32nm process technology)
Intel Core i7-2710QE
(6M Cache, up to 3.0 GHz)
IntelCore i5-2510E
(3M Cache, up to 3.1 GHz)
Intel Core i3-2330E
(3M Cache, 2.2 GHz)
System Memory 2 x 204pin DDR3
SODIMM Socket , up to 4GB 2 x 200pin DDR2, 533/667MHz
SODIMM Socket , up to 4GB 2 x 204 pin DDR3 SO-DIMM Socket
1333MHz, up to 16GB
OS Support POS Ready 2009, POS Ready 7, Windows XP Pro, Vista, Windows 7, Linux
HDD Storage 1x 2.5" SATA
Compact Flash 1 x Slot Type I II, Non-removable 1 x CFast Slot for SATAI / SATA II
Display TFT LCD, 250 nits, 1024 x 768 Pixel
Touch Flat 5 Wire Resistive Type
Tilting Angle Fixed 50°
Power Input 12VDC 90W,4-pin Connector with Lock
(External Adaptor: 100~240 VAC, 50/60HZ)
Power Input (Printer) 24VDC/2.5A (with External Adapter 100~240VAC 50/60Hz)
Weight 8.5 Kg
Dimension (W x D x H: mm) 370 x 320 x 300
Compliance FCC / CE / WEEE / RoHS
Interface 2 x COM with Power Selected 5/12V,
1 x COM without Power Output 4x COM (3 x DB9 , 1x RJ45
with power output, 5/12V selectable)
1 x DB25 Parallel Port ---
6 x USB 2.0 (External),
2 x USB 2.0 (Internal, 1 reserved for touch screen) 2 x USB3.0 (External),
4 x USB2.0 (External),
3 x USB 2.0 (Internal, reserved for
touch screen, Wi-Fi, and MSR)
1 x PS/2 Mouse, 1 x PS/2 Keyboard 1 x mini-DIN-6 mixed PS/2
(for PS/2 Keyboard/Mouse•)
1 x DB-15, VGA Port
1 x 12VDC In, 1 x 12VDC Out
1 x RJ-45 Giga LAN 2 x RJ-45 Giga LAN 1 x RJ-45 Giga LAN
1 x RJ-11, 12/24 VDC Selectable
1 x Audio Line Out, 1 x MIC In, 2 x Internal Speaker 2W
1 x Mini PCIe(Internal) --- ---
Printer 250 mm/sec High-Speed Thermal Receipt Printer
Interface (printer) Multi I/O Interface
(Serial +Ethernet +USB; RJ-11 for Cash Drawer)
Customer Display Vacuum Fluorescent Display
(Brightness: 700 cd/m2, 20 x 2)
Secondary LCD Display 8.4”, 10.4”, 12.1", 15" with or without Touch
MSR 3 Track, PS/2 or USB or COM
I-Button Dallas Key RS232 I/F
Wi-Fi Optional
(Mini PCIe or USB Type available) Optional (USB Type) Optional (USB Type Module)
