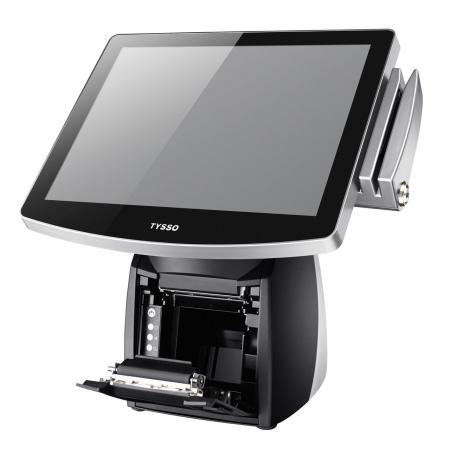

POP-650 Fanless, All-In-One Full-Flat POS System
Modular Fanless All-in-one POS System
．Energy-saving Atom D2550 (Dual Core 1.86 GHz)
．DDR3 RAM module (1~4G)
．15 inch Full-Flat LCD monitor
．Touch Screen: 5 Wire Resistive or Projective Capacitive (Multi-Touch support)
．Fanless Cooling System
．Embedded 250 mm/sec High-Speed thermal receipt printer
．Rear Mount VFD customer display (700 cd/m2 20 x 2)
．Secondary Display (8.4 inch/10.2 inch, touchscreen type available)
．Embedded MSR and i-Button
．Gigabit LAN Port
．Interface: USB 2.0 / RS-232 / RJ-11 / RJ-45...etc.
．Fully-Functional with Space-saving Design to fit into small
CPU Intel ATOM processors D2550 Dual Core (1.86 GHz, 1M Cache)
System Memory 1 x 204pin DDR3 SODIMM Socket , up to 4GB
OS Support POS Ready 2009, POS Ready 7, XP Pro, Vista, Windows 7, Linux
HDD Storage 1 x SATA
Compact Flash 1 x mSATA Slot
Display TFT LCD, 1024 x 768 Pixel
Size 15"
Brightness 250 nits
Tilt Angle 35°~90° (horizontal)
Power Input 12VDC 180W,4-pin Connector with Lock (Internal Adaptor: 100~240 VAC, 50/60HZ)
Weight 8.5 Kg
Dimension (mm) 391(W) x 395(H) x 266(D)
Compliance FCC / CE / WEEE / RoHS
Interface 3 x COM with Power Selected 5/12V (COM 1/2/6),
1 x COM without Power Output (COM 4)
Selected by Jumper
1 x Parallel Port
3 x USB 2.0 (buttom), 2 x USB 2.0 (side)
1 x PS/2 (for PS/2 Keyboard/Mouse)
1 x RJ-45, Giga LAN Support
1 x DB-15, VGA Port
1 x 12VDC In, 1 x 12VDC Out
1 x 24VDC 3-pin Connector with lock (for base printer module)
1 x RJ-11, 12/24 VDC Selectable
1 x Line Out, 1 x MIC In, 1 x Internal Speaker
