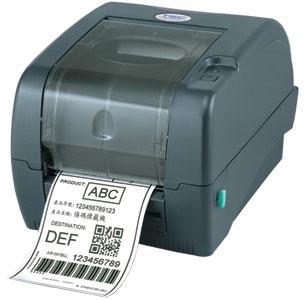

TTP-247 Series Desktop Barcode Printer TTP-247 Series Industry-leading Performance At A Budget Price
The new TTP-247 thermal transfer desktop barcode printer series delivers more performance for the price than any other printer in its class. Based on the design of its best-selling predecessor, the TTP-245 Plus, the TTP-247 runs at an impressive 7 inches per second, printing up to 4 inches wide at 203 dpi resolution. A second model in the series – the TTP-345 – offers high resolution 300 dpi printing at 5 inches per second. Both models offer 8 MB of SDRAM and 4 MB of onboard Flash memory. Gigabytes of Flash memory can be added via an onboard SDHC card reader.
TTP-247 series offers USB 2.0, parallel and serial connectivity, plus an optional Ethernet port for networking. It also incorporates the TSPL-EZ™ printer-control language, which is fully compatible with other TSC printer languages, while supporting TPLE (Translation Printer Language Eltron®) and TPLZ (Translation Printer Language Zebra®). The languages automatically decipher and translate the format of each label as it is sent to the printer. TSPL-EZ™ also features internal scalable True Type fonts (based on the Monotype® font engine), which are typically found only in more expensive printers.
Like its predecessor, the TTP-247 series features a user-friendly clamshell design for easy drop-in media loading, along with a rugged double-wall design that is stronger and more durable than other thermal transfer mechanisms on the market. Its innovative two-motor gear-driven engine is powerful enough to handle a 300-meter-long ribbon and label rolls up to 8.4 inches in diameter.
By using two motors instead of the usual one, TTP-247 series printers operate at lower torque, reducing noise, decreasing wear and tear, and extending printer life. The platform’s user-friendly design makes it easy for operators to load and unload ribbons, and its 300-meter capacity is more than four times the industry-standard length for desktop printers.
The TTP-247 series holds up to a 5-inch OD roll on a 1-inch core and, using an optional external media hanger, can accommodate a full 8.4-inch OD label roll on a 3-inch core. With its many performance features and budget-friendly price, the TTP-247 series is by far one of the most attractive thermal transfer barcode printers on the market.
Product Sheet Download
Model Printing Method Resolution Max. Print Width Max. Print Length Max. Print Speed
TTP-247 Thermal Transfer 203 dpi 4.25" 90" 7 ips
TTP-345 Thermal Transfer 300 dpi 4.17" 40" 5 ipsDesktop Bar Code Printer TTP-247
Key Features
Up to 177.8 mm (7”) per sec. print speed
4 MB Flash memory and 8 MB SDRAM memory
SD Flash memory expansion up to 4 GB
User-friendly clamshell design
Label gap sensor & full-range adjustable black mark sensor
Parallel, serial & USB 2.0 interfaces
Main board integrated with internal Ethernet (factory option)
Label capacity up to 214 mm OD (8.4” OD)
Ribbon capacity up to 300 m (984’)
TSPL-EZ™ firmware for plug-n-play ease
Optional peel-off module, cutter module, stand-alone keyboard and scanner
Applications
Business/ office
Product marking
Compliance labeling
Asset tracking
Document management
Shelf-labeling
Shipping/ receiving
Specimen labeling
Inventory control
Patient tracking
