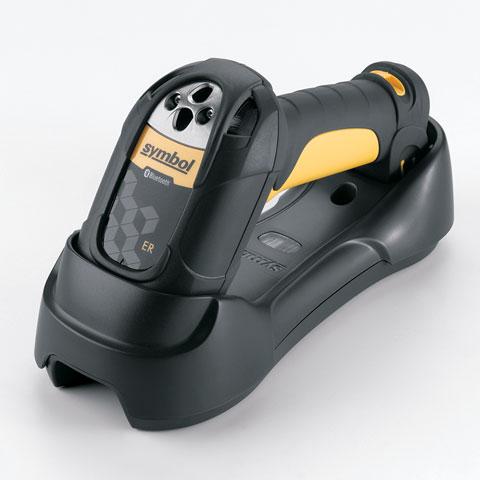

Symbol LS3578-FZ Rugged Bar Code Scanner
Designed to meet the challenges of harsh manufacturing environments, the Symbol LS3578-FZ features fuzzy logic technology which allows first pass reads of nearly any 1D bar code, even when the bar code is dirty or damaged.
Reliable and secure wireless data transmission between the scanner and host is guaranteed with integrated Bluetooth, while the 150 ft. (45 m) range allows operators to move freely without being restricted by a cord. A rugged, drop-resistant design and a sealed housing provide reliability with less accident-related equipment failure and downtime.
High performance scanner with fuzzy logic decode capability
Quickly and accurately scans all 1D bar codes on therst scan, including poorly printed, dirty, damaged or low-contrast bar codes
Integrated Bluetooth Class 2 v 1.2 (Serial Port and HID Pro les with authentication and security)
Cordless scanning with secure wireless data transmission
Cordless scanning
Enables real-time bar code data collection unrestricted by a cable, reducing repairs from cable failure
Rugged design withstands multiple 6.5-ft. (2-m) drops to concrete
Ensures maximum reliability with less downtime resulting from accidental drops
IP65-rated seal (electronic enclosure)
Protects against water and dust for reliable performance in the harshest environments
Bright LED and beeper with adjustable volume
Helps ensure that decode feedback is clearly visible and audible to users, even in noisy environments
Multi-point communication
Use up to three scanners with a single cradle, reducing capital expenditures and maintenance costs
Bright 650 nm laser aiming dot
Delivers clearly visible line for more accurate scanning
Supports reduced space symbologies (RSS)
Ensures compatibility with emerging symbols to protect your hardware investment
Advanced data formatting
Eliminates costly modifications to the host software
Batch mode operation
Increases application design exibility to better meet your specific needs
Remote scanner management ready
Enables you to discover, provision and upgrade devices from a central remote location, reducing management time and costs
Handheld
yes
Cordless
yes
High performance scanner with fuzzy logic decode capability
Quickly and accurately scans all 1D bar codes on therst scan, including poorly printed, dirty, damaged or low-contrast bar codes
Integrated Bluetooth Class 2 v 1.2 (Serial Port and HID Pro les with authentication and security)
Cordless scanning with secure wireless data transmission
Cordless scanning
Enables real-time bar code data collection unrestricted by a cable, reducing repairs from cable failure
Rugged design withstands multiple 6.5-ft. (2-m) drops to concrete
Ensures maximum reliability with less downtime resulting from accidental drops
IP65-rated seal (electronic enclosure)
Protects against water and dust for reliable performance in the harshest environments
Bright LED and beeper with adjustable volume
Helps ensure that decode feedback is clearly visible and audible to users, even in noisy environments
Multi-point communication
Use up to three scanners with a single cradle, reducing capital expenditures and maintenance costs
Bright 650 nm laser aiming dot
Delivers clearly visible line for more accurate scanning
Supports reduced space symbologies (RSS)
Ensures compatibility with emerging symbols to protect your hardware investment
Advanced data formatting
Eliminates costly modifications to the host software
Batch mode operation
Increases application design exibility to better meet your specific needs
Remote scanner management ready
Enables you to discover, provision and upgrade devices from a central remote location, reducing management time and costs
Handheld
yes
Cordless
yes
PHYSICAL CHARACTERISTICS
Color Twilight black, Yellow
Cordless Yes
Dimensions 7.34 L x 4.82 x 2.93 in. (18.65 x 12.25 x 7.43 cm)
Handheld Yes
Weight 14.6 oz. (414 g)
PERFORMANCE CHARACTERISTICS
Decode capability 1D, See data sheet for full list of supported symbologies
Interfaces supported IBM, Keyboard wedge, RS-232, Synapse, USB
Pitch1 +/- 65 degrees from normal
Roll (Tilt) 2 +/- 20 degrees from normal
Skew (Yaw)3 +/- 50 degrees from normal
Technology Laser
NOTICES AND DISCLAIMERS
Notices and Disclaimers4 See footnote.
RADIO SPECIFICATIONS
Radio type Bluetooth
REGULATORY SPECIFICATIONS
EMC EN 301 489-1, EN 301 489-17, IEC 60601-1-2, EN 55022, FCC Part 15 Class B, ICES 003 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3
Electrical Safety UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1
Environmental RoHS Directive 2002/95/EEC
Laser Safety5 EN 60825-1, IEC 60825-1, 21CFR1040.10
RF Exposure EN 50360, EN 50361, FCC Part 2, OET Bulletin 65, RSS102
Radio EN 300 328
USER ENVIRONMENT
Ambient light immunity Indoor: 450 foot candles/4,842 LUX; Outdoor: 4,000 foot candles/43,040 LUX
Drop specifications Unit functions normally after repeated 6.5-ft. (2-m) drops to concrete
Environmental sealing IP65
Operating temperature -4° to 122°F (-20° to 50°C)
Storage temperature -40° to 140°F (-40° to 60°C)
1 Pitch: Controlled by dropping or raising the wrist
2 Roll (Tilt): Controlled by rotating the wrist clockwise or counterclockwise
3 Skew (Yaw): Controlled by rotating the wrist from left to right or vice versa
4 Specifications are subject to change without notice.
NOTICE: Repairs of this product may require the use of Motorola proprietary parts (and/or Motorola proprietary information). Motorola will sell these parts (and provide this proprietary information) only to end-user customers for self-service. It is Motorola's policy not to sell these parts to third-party service providers and not to allow a third-party service provider to act as an ordering or receiving agent for the parts necessary to repair this product. Applicable in the U.S. For all other countries, please contact your Motorola account manager or the local Motorola Customer Service representative in your area for further details.
