Scan 1D bar codes faster — even when they're poorly printed
The rugged handheld, corded LS3408-FZ bar code scanner that captures all one-dimensional (1D) bar codes even when they’re dirty, damaged or poorly printed.
Additional benefits:
Features fuzzy logic technology for fast and accurate reading of 1D bar codes, no matter what their condition
IP65-rated sealing protects against elements and dust
Withstands multiple 6.5-ft. (2-m) drops to concrete
Two modes of confirmation, a bright light and a beeper with adjustable volume, let operators know when scan is successful — even in noisy or poorly lit areas
Multiple on-board interfaces ensure you’ll be able to use your scanner with different hosts, while its support for reduced space symbology (RSS) and 14-digit global trade item number (GTIN) bar codes provides compatibility with emerging symbologies.

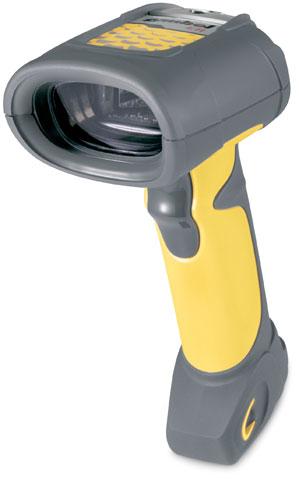

LS3408FZ Scanner
Rugged handheld scanner
Reads damaged 1D bar codes for maximum industrial productivity
TThe rugged Symbol LS3408FZ handheld scanner from Motorola features fuzzy logic technology for fast and accurate reading of damaged, dirty and poorly printed one-dimensional (1D) bar codes typically found in industrial environments. In the yard, warehouse, distribution center, manufacturing plant or retail store, the Symbol LS3408FZ handheld scanner offers superior performance, reliability and user-friendly ergonomics to improve productivity. Multiple on-board interfaces ensure flexible plug-and- play host connectivity.
Advanced data capture technology for tough environments
As innovative as it is rugged, the Symbol LS3408FZ delivers the ergonomic and operational features for scan intensive industrial applications. Industry-leading impact tests ensure reliable performance in spite of the inevitable accidental drops. The device is impervious to dust and water, and its exit window is scratch-resistant and recessed for the highest level of durability. As a result, you avoid unnecessary equipment downtime or expensive equipment replacement costs. For applications requiring quick access and convenient storage, the Symbol LS3408FZ features a built-in metal hook for attachment to a pulley. Two large LED-enhancing windows and extra loud 80 decibel (db) beeper are strategically placed on the scanner to ensure that decode feedback is clearly visible and audible to users.
Capturing mission-critical information the smart way
The standard range Symbol LS3408FZ is designed specifically for industrial applications. When you choose the Symbol LS3408FZ, you receive the added assurance of purchasing from Motorola — a company with proven advanced data capture capabilities and millions of scanner installations worldwide.
For more information on the rugged Symbol LS3408FZ handheld scanner and the full line of accessories, contact us at +1.800.722.6234 or +1.631.738.2400, or visit us on the web at www.symbol.com/ls3408fz.
Features Benefits
High-performance scanner with fuzzy logic decode capability Premium scanning for all 1D codes including poorly printed, damaged or low contrast bar codes
Ergonomic, rugged industrial design withstands multiple 6.5 ft. (2 m) drops to concrete and 2,500 3 ft. (1 m) tumbles (5,000 hits) Reduces user fatigue and ensures less down time due to accidental drops
IP65 sealing rating (electronic enclosure) Protects against water and dust to ensure reliable performance in harsh industrial conditions
Bright LED and beeper with adjustable volume Multiple modes of confirmation ensure positive user feedback in noisy environments
Bright 650nm laser aiming dot Delivers clearly visible line for precise, accurate bar code data capture
Supports Reduced Space Symbologies® (RSS) Compatible with emerging symbologies helps you to leverage your hardware investment
Global Trade Item Number™ (GTIN™) compliant Decodes and transmits 14-digit GTINs where appropriate
Advanced data formatting Eliminates costly modifications to the host software
Flash memory Facilitates updates/customization of product in the field
Universal cable set Allows for easy replacement and/or upgrades
Multiple onboard interfaces Ensures flexible connectivity, allowing for host "future proofing"
Hands-free Intellistand™ (optional) Enables presentation scanning and easy switching between hands-free and handheld modes
LS 3408FZ Specification Highlights
Physical Characteristics
Dimensions: 7.34 in. H x 4.82 in. W x 2.93 in. D 18.65 cm H x 12.25 cm W x 7.43 cm D
Weight (without cable): 12.35 oz./350 gm
Power Requirements: 4.5 - 14VDC
Stand-by Current: 50mA
Power Sources: Depending on host:
* Host power
* External power supply
Color: Twilight Black/Yellow
Performance Characteristics
Scanner Type: Retrocollective
Light Source: 650 nm visible laser diode
Scan Repetition: 36 scans per second typical
Minimum Element Width: 5 mil/0.127 mm
Nominal Working Distance: See Decode Zone
Print Contrast: 25% minimum reflective difference
Roll (Tilt): +/- 20 degrees from normal
Pitch: +/- 65 degrees from normal
Skew (Yaw): +/- 50 degrees from normal
Decode Capability: Decode Capability:UPC.EAN, UPC.EAN with Supplementals, UCC.EAN 128, JAN 8 & 13, Code 39, Code 39 Full ASCII, Code 39 Trioptic, Code 128, Code 128 Full ASCII, Codabar (NW7), Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, Code 32, Bookland EAN, IATA, UCC/EAN RSS and RSS variants
Interfaces Supported: RS232, Keyboard Wedge, Wand Emulation, Scanner Emulation, IBM 468X/469X, USB and Synapse
User Environment
Operating Temperature: -22° to 122° F/-30° to 50° C
Storage Temperature: -40° to 158° F/-40° to 70° C
Humidity: 5% to 95% relative humidity, noncondensing
Sealing: Sealed to IP65 specifications
Drop Specifications: Unit functions normally after repeated 6.5 ft./2 m drops to concrete
Ambient Light Immunity: Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight: Indoor: 450 ft. candles/4,842 LUX Outdoor: 8,000 ft. candles/86,080 LUX
Electrostatic Discharge: Conforms to 20 kV air discharge and 8 kV of contact discharge
Regulatory
Input Transient Protection: IEC 1000-4-(2,3,4,5,6,11)
EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Japan VCCI/MITI/Dentori
Laser Safety: IEC825-1 Class 2
Warranty
The Symbol LS3408FZ is warranted against defects in workmanship and materials for a period of 3 years (36 months) from date of shipment, provided that the product remains unmodified and is operated under normal and proper conditions. See full warranty for details.
1 - Roll (Tilt): Controlled by rotating the wrist clockwise or counterclockwise
2 - Pitch: Controlled by dropping or raising the wrist
3 - Skew (Yaw): Controlled by rotating the wrist from left to right or vice versa
