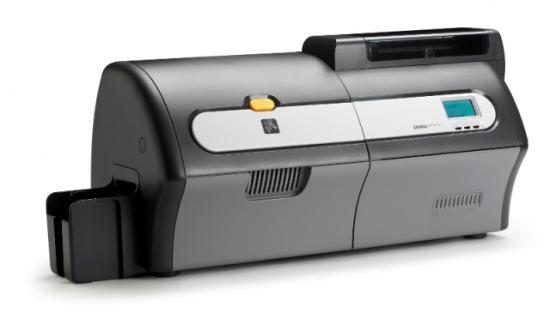

ZXP SERIES 7 CARD PRINTERS
Using the latest in Zebra card-printing technology, the ZXP Series 7 provides high-volume high-quality card printing. The printer delivers fast yet reliable performance while offering users exceptional value by lowering the printer's total cost of ownership. Time after time, it prints sharp vivid cards with precise color control.
Standard Features
High speed color and monochrome direct-to-card printing
Zebra True Colours ix Series high-performance ribbons with intelligent media technology
High capacity media for reduced downtime
More Standard Features
300 dpi/11.8 dots per mm print resolution
USB 2.0 and Ethernet 10/100 connectivity
Microsoft® Windows-certified drivers
10-50 mil auto-adjusting card feeder
200-card capacity feeder (30 mil)
15-card reject hopper (30 mil)
100-card output hopper (30 mil)
Manual card feed capability
21-character x 6-line LCD operator display with configurable soft keys
Kensington® physical lock slot
Two-year unlimited warranty on printer and printhead
Optional Features
Single and dual-sided laminator
Lockable enclosures and card feeder
Extended product warranty programs
Encoding Options
High and low coercivity magnetic stripe encoder
Combined MIFARE® ISO 14443 A & B contactless and ISO 7816 Contact Encoder
ISO 7816 Smart Card Contact Station for third party external contact encoders
Printing and laminating specifications
Color dye sublimation or monochrome thermal transfer printing
Single- and dual-sided printing
Edge-to-edge printing on standard CR-80 media
Simultaneous printing, encoding, and laminating capability
One-pass single- and dual-sided wasteless lamination
1375 cards/hour monochrome single-sided or 555 cards/hour dual-sided printing
300 cards/hour full-color YMCKO single-sided printing
225 cards/hour full-color YMCKOK dual-sided printing
270 cards/hour full-color YMCK single-sided printing with lamination
200 cards/hour full-color YMCKK dual-sided printing with lamination
Supplies Specifications
True Colours® ix Series™ ribbons:
YMCKO: 250 or 750 images/roll
YMCKOK: 250 or 750 images/roll
YMCUvK: 750 images/roll
Black monochrome: 2500 or 5000 images/roll
White monochrome: 2500 images/roll
True Secure™ i series laminates:
Linerless waste-free 1.0 mil top and bottom laminate: 750 images/roll
Laminate types: clear, magnetic stripe, magnetic stripe with signature panel, smart card, and holographic wallpaper designs
Custom laminates with registered or wallpaper holographic images available
Card cleaning rollers are included with each ribbon carton
Specially designed cleaning supplies simplify preventative maintenance
NOTE: For optimum print quality and printer performance, use of Zebra genuine supplies is recommended.
Card specifications/compatibility
Card Thickness: 10 – 50 mil (0.25 – 1.27mm)
Card Thickness for lamination: 30 mil (0.76 mm) only
Card Size: CR-80, ISO 7810 format, Type ID-1
Card Material: PVC and composite, PET, PET-G, PET-F, and Teslin® composite
Technology Cards: contact and contactless smart cards
Specialty cards: adhesive backed, transparent (IR-blocked), signature panel, and select key-tag types
Operating Characteristics
Operating Temperature: 59º F/15ºC to 95º F/35ºC
Storage Temperature: 23º F/-5ºC to 158º F/70ºC
Operating Humidity: 20% to 80% inclusive, non-condensing
Storage Humidity: 10% to 90% inclusive, non-condensing
Media should not be above 140º F/60º C for longer than 200 hours, and above 90% relative humidity at 104º F/40º C for longer than 100 hours
Electrical Specifications
Auto-switching single-phase AC power
90V~264V AC and 47–63Hz (50-60Hz nominal)
FCC Class A
Energy Star compliant
Physical Characteristics
Height: 12.0" (306mm)
Width (printer only): 27.5" (699mm)
Width (printer with laminator): 38.0" (964mm)
Depth: 10.9" (277mm)
Weight (printer only): 26.9 lbs (12.2 kg)
Weight (printer with laminator): 39.5 lbs (17.9 kg)
Software
ZMotif SDK support and sample code
Microsoft Windows-certified printer drivers with Toolbox utility features: Windows 7, Windows Vista®, Windows Server® 2008
(all 32- and 64-bit-compatible), and Windows XP, Server 2003 (both 32-bit-compatible)
CardStudio card design and issuance software with Direct-to-Print (D2P) driver technology support
Zebra Virtual PrintWare software support
