USB Trigger (Virtual Serial Port Driver), enables cash drawer to connect the cash drawer to USB port
USB Trigger (Virtual Serial Port Driver), enables cash drawer to connect the cash drawer to USB port on POS terminal or PC directly, without the need for a receipt printer, including the USB cable. Suitable for cash drawer with 12V or 24V

Introduction:

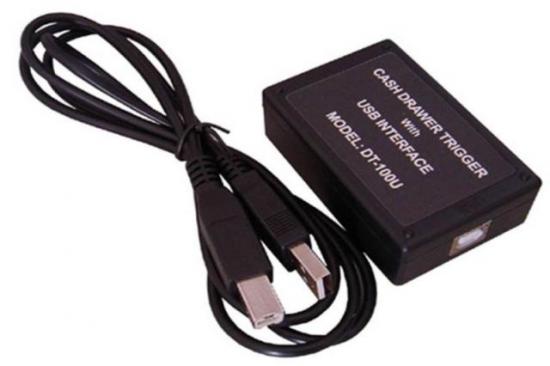

DT-100U Cash Drawer Trigger is designed to provide USB interfacing to the cash drawer. This allows the cash drawer, which is previously connected to POS printer or cash register, to be directly connected to a USB port of the computer. This means through the DT-100U the cash drawer can be directly connected to the computer when there is no printer used in the POS system.

The DT-100U USB Trigger Module uses a Virtual Serial Port Driver, making it appear to software like a standard RS232 Serial Port. This way existing POS Software can communicate with the USB Cash Drawer Trigger as though connected to a Serial Port. A unique serial number is assigned to each USB Trigger Module and the Driver Software will assign the next available Serial Port to each device it recognizes (multiple Triggers can be used on one PC).

Features:

□ Cash drawer can be directly connected to the computer with DT-100U

□ Powered by the USB bus, external power is not required.

□ Allows for “Hot Plugging”, Plug and Play connectivity.
□ No need to set the COM property.

□ Suitable to any CASH DRAWER command. Write any data to drawer COM port will open the cash drawer
