ขาย [Made in Japan] CHINO LE5000 Series 250mm Hybrid Recorder - Multi-Channel Recorder (USB/Ethernet/RS422A/RS485) Temperature/Voltage/Current Recorder เครื่องบันทึกอุณหภูมิ/แรงดันไฟฟ้า/กระแสไฟฟ้า ผลิตจากประเทศญี่ปุ่น ราคาพิเศษ

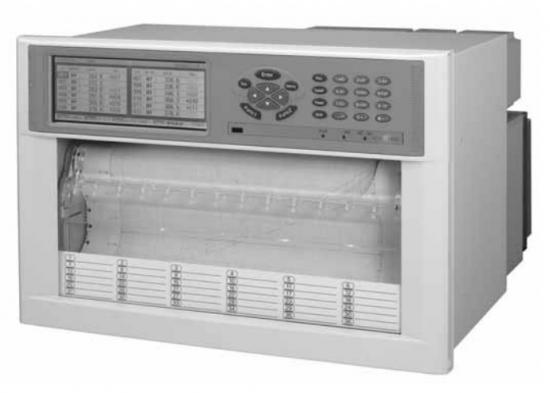

LE5000 Series are 250 mm hybrid recorders with multi-range input. Innovative design high performance recorder provides high accuracy, +/-0.05%; high speed sampling, 0.1 s for 36 points and high speed recording, 3 s/line. Simple operational keys and PC setting functions drastically improved usability of recording system.

Feature
- High speed sampling at 0.1 s for 36 points and high speed recording
- High accuracy of 0.05%
- Various industrial values can be measured at the same time with selectable ranges
- Superior ease of operation
- Engineering port is provided (USB)
- Anti-noise countermeasures
- Communications interfaces are available (Optional)
- Recording and calculation of data communication input (Optional)

Main Specification
- Number of measuring points : 12, 24 or 36 channels
- Input signal : DC voltage, Thermocouple, Resistance thermometer and DC current(Shunt resistors)
- Sampling rate : 100 ms
- Communication : Ethernet, RS422A and RS485 (Optional)
- Output : Mechanical relay (Optional)
- Power supply : 100 to 240 V AC, 50/60Hz

Specification Sheet : https://www.chino.co.jp/english/download/pdf/LE5000_PSE-352B.pdf
***Specifications subject to change without notice.
