ขาย [Made in Japan] CHINO KR2S Series Graphic Recorder (Paperless) - Multi-Channel Recorder (USB/CF/Ethernet/RS485) Temperature/Voltage/Current Recorder เครื่องบันทึกอุณหภูมิ/แรงดันไฟฟ้า/กระแสไฟฟ้า ผลิตจากประเทศญี่ปุ่น ราคาพิเศษ

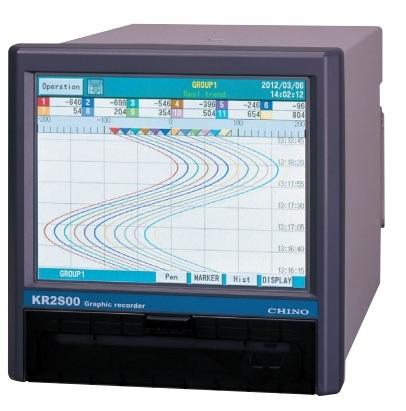

KR2S Series are advance touch screen display (Keyless) paperless Graphic Recorder with high performance and high operating function along with high visibility 5.7" VGA TFT color LCD Display.
Universal input with high speed of sampling rate 100 ms and high accuracy rate of +/- 0.1 % realized. Measured data is stored into memory and support up to 8 GB through USB and CF Card. As it can be monitored by a web browser display on several computer in intranet or internet, FTP transfer of data file and E-mail notification are also available.

Feature
- 5.7" VGA TFT color LCD display
- Large capacity of data memory and various recording method
- Multi points recording with high speed/accuracy
- Easy operating and programming
- USB port provided in front
- LAN network capability
- Safety system and reliability
- Analyzing/Data acquisition application software (Sold separately)
- Graphic Screen
- Writing/Draw Comments on screen

Main Specification
- Number of measuring points : 6 or 12 channels
- Input signal : DC voltage, Thermocouple, Resistance thermometer and DC current(Shunt resistors)
- Sampling rate : Up to 100 ms
- Communication : Ethernet and/or RS485 (Optional)
- Output : Mechanical relay (Optional)
- Power supply : 100 to 240 V AC, 50/60Hz

Specification Sheet : https://www.chino.co.jp/english/download/pdf/PSE-801.pdf
***Specifications subject to change without notice.
