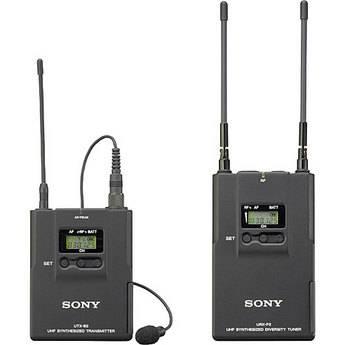

The Sony UWP-V1 Wireless Lavalier Microphone System replaces its UWP-C series predecessor with enhancements that include a rugged, all-metal chassis and Mic/Line switchable input at the transmitter. PLL-synthesized tuning, space-diversity reception and all other professional wireless features that made the UWP-C series a popular choice, go into the enhanced UWP-V1 system.

The camera-mountable receiver features space-diversity technology which stabilizes reception and minimizes RF interference by selecting the strongest incoming signal. In addition the antennas swivel so that you can achieve even stronger reception. A stereo mini jack output with monitor volume control is featured and both stereo, mini and XLR cables are provided. An LCD display provides channel & frequency information, battery life, RF-input level, audio-output status and accumulated operating time. The receiver operates on 2 AA batteries for up to 8 hours and its compact design and included shoe-mount adapter allows easy mounting to most camcorders.

The improved body-pack transmitter features a microphone and line level input switch. This allows wireless transmission of microphone or line level signals. Like the receiver, the body-pack transmitter also features 188 selectable UHF frequencies and operates up to 8 hours on 2 AA size alkaline batteries. An omnidirectonal lavalier microphone is supplied with this system.

สนใจรายละเอียดสามารถโทรสอบถามหรือเข้าไปที่ www.99aplus.co.th

Type of System Camera Mountable UHF Synthesized Wireless Lavalier System
RF Carrier Frequency Range 30/32 - 566 to 590MHz
Approx. Working Range Not Specified by Manufacturer
Overall Frequency Response 40Hz to 18kHz
Signal-to-Noise Ratio 60dB (A-Weighted)

Of Channels 188

Of Simultaneous Systems 16

Type of Receiver Camera Mountable, Space Diversity, Crystal-Controlled PLL Synthesizer
Type of Outputs 3.5mm (1/8") Mini-Plug, unbalanced
Headphone Monitoring 3.5mm (1/8") Mini-Plug, unbalanced with Variable Level
Power Requirements DC 3.0V (2 AA alkaline batteries)
Battery Type/Approx. Life Two AA Batteries, Up to 8 Hours
Display LCD Display
Mounting Options Camera / Belt / Mic Stand Mountable
Antenna Type (2) 1/4 Wave Wire
Dimensions (WxHxD) 2.48 x 4.11 x 0.86" (63 x 104.5 x 22mm)
Weight Approx. 7.2 oz (205g) (including batteries)

Type of Transmitter Crystal-Controlled UHF PLL-Synthesized Body-pack Transmitter
Type of Input Connector Mic/Line Switchable - Mini Microphone Connector (3.5mm)
Type of Microphone Lavalier
Polar Pattern Body-pack transmitter not handheld
Interchangeable Mic Heads compatible with any microphone features a mini (3.5mm) connection
Battery Type/Approx. Life 2 AA Alkaline Batteries, Up to 8 Hours
Mute Switch No
Level Control Microphone level control
Antenna Type Miniature 1/4 Wave Length Helical Antenna
Display LCD Display
Dimensions (HxWxD) 2.48 X 3.24 X 0.73" (63 x 82.5 x 18.7mm)
Weight 5.1 oz. (145g) (with Battery)
