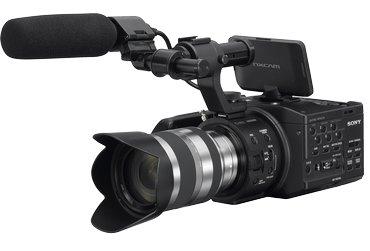

Sony NEX-FS100PK Specification
Camcorder Type Super 35 mm Professional Digital Video Camera
Sensor type Super 35 mm
Lens SEL18200 E mount 18-200
Filter Size 67 mm
Aperture range 3.5-6.3
LCD Dimension 3.5 inch-type
LCD Techology XtraFine LCD
LCD Pixels 921,600 dots(1920 x 480), 16:9 aspect ratio
Video Format Video Format HD: MPEG-4 AVC/H.264 AVCHD format compatible (1080/50p original format).
Video Format SD: MPEG-2 PS
Audio Format
HD: Linear PCM 2ch, 16bit, 48kHz / Dolby Digital 2ch, 16bit, 48kHz
STD: Dolby Digital 2ch, 16bit, 48kHz
HD PS (28Mbps) 1920x1080/50p, HD FX (24Mbps) 1920x1080/50i, HD FH (17Mbps) 1920x1080/50i, HD HQ
(9Mbps) 1440x1080/50i, HD LP (5Mbps) 1440x1080/50i, HD FX (24Mbps) 1920x1080/25p, HD FH (17Mbps)
1920x1080/25p, HD FX (24Mbps) 1280x720/50p, HD FH (17Mbps) 1280x720/50p, SD/STD HQ (9Mbps)
720x576/50i (Due to variable bitrate, 24Mbps is the maximum bitrate for AVCHD FX mode and the average bitrate is being stated for FH, HQ and LP modes.)
Video out HDMI, Component, Composite
USB USB device, mini-AB/Hi-Speed (x 1)
Media Type SD/SDHC/SDXC Memory Card (Class 4 or higher), Memory Stick PRO Duo(Mark2), Memory Stick PRO-HG Duo,Memory Stick PRO-HG Duo HX.
Min shutter Auto: 50i/50p: 1/50-1/1750, 25p: 1/25-1/1750 Manual: 1/3 - 1/10000, 1/50 - 1/1750 (50i, 50p), 1/25 - 1/1750 (25p)
Weight (include batteries) Approx. 1.04 kg (2 lb 4oz) (body only), Approx. 2.76 kg (6 lb 1oz) (w/optional lens w/VF, w/ Battery (NP-F970), w/large eyecup, w/handle, w/MIC (ECM-XM1),w/grip, w/o gripbelt)
Feature Minimum illumination: 0.28 lx (1/25 shutter, IRIS F1.4, Auto GAIN) - 1.5 lx (w/ supplied lens: auto gain, auto iris, 1/25 shutter speed)
Audio input: XLR 3-pin (female) (x 2), LINE/MIC/MIC +48 V selectable
Launch 2012
Auto Focus Yes
Manual Focus Yes
Special Effects Slow & Quick Motion function Rec Format: 1080/50p, 1080/25p
Warranty 1 Year
Battery Life Continuous Recording Time Approx. 510 min (NP-F970:fully charged battery)
Package Contents E 18–200mm F3.5–6.3 OSS) E-Mount lens, with 11x zoom power
AC-VL1 AC Adapter/Charger
NP-F770 L-Series Info-Lithium Battery Pack (7.2v, 4400mAh)
DK-415 Connecting Cord
ECM-XM1 Microphone
RMT-845 Remote Commander
Component Video Cable
A/V Connecting Cable
USB Connecting Cable
USB Adapter Cable
Viewfinder Tube
Lens Hood with Lens cover
Accessory shoe kit
Large Eyecup
CR2025 Lithium Battery , clock Lithium (Installed)
Application Software (CD-ROM)
Other Regarding the release of NEX-FS100P, NEX-FS100PK Firmware upgrade programs
Timing
Firmware upgrade programs of NEX-FS100P, NEX-FS100PK are scheduled to be ready at March 29th in 2012(Japan Standard Time). Detail upgrade procedure will be provided at the same timing.
Additional Features
[For NEX-FS100P, NEX-FS100PK]
1. 60/50Hz(NTSC/PAL) switchable feature
2. Camera Profile (camera setting saved in the memory card)
3. Expanded Focus (x4/x8, selectable focus area)
4. ISO sensitivity display
5. Focus feet (E-mount lens only), Shutter angle display
6. Variation added for “Aspect markers”
7. “Zebra” and “Histogram” can be turned on by “Display on/off” for line out purpose.
8. Compatibility with new A-mount to E-mount adaptor [LA-EA2] with Translucent Mirror Technology (Auto Focus operation is available with alpha lens)
*Details on each feature will be updated before the actual update program release
