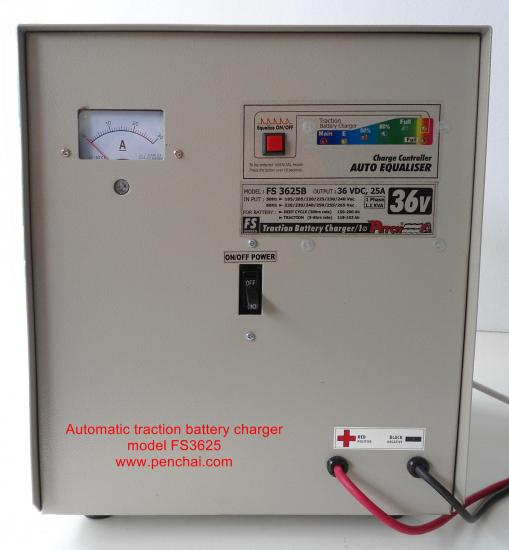

Automatic traction or deep cycle battery charger FS3625
- This range of automatic battery charger has been designed for using in a rugged industrial environment for the daily cycle usages recharging of traction batteries or deep cycle batteries used in a wide range of motive vehicles. The range includes: forklift trucks, stacker, pallet truck, AGV, floors sweepers, milk floats and other on highway electrical vehicles. Best for cycle usages, not for standby charging.
Model Single phase (FS Series) |
Output Current (DC Amp.) |
Power (KVA) |
Input Current/phase (Amp.) |
Input Cable Size (Sq.mm.) |
Case size (mm.) |
Weight (kg.) |
Battery Volt (DC V.) |
Deep cycle batt. capacity (20 hrs rate) |
Traction batt. capacity (5-6 hrs rate) |
FS3625 |
25 |
1.1 |
5.5 |
1.00 |
W372xL283xH356 |
26 |
36 |
150-200 |
118-153 |
For Traction Battery
- I.คำนวนหาขนาดรุ่นที่ต้องการ = ความจุแบตเตอรี่/6 (กรณีที่ต้องการชาร์จประมาณ 10 ชั่วโมงเต็ม)
- II.คำนวนหาขนาดรุ่นที่ต้องการ = ความจุแบตเตอรี่/4.5 (กรณีที่ต้องการชาร์จประมาณ 8 ชั่วโมงเต็ม)
For Deep Cycle Battery
- I.คำนวนหาขนาดรุ่นที่ต้องการ = ความจุแบตเตอรี่/8 (กรณีที่ต้องการชาร์จประมาณ 10 ชั่วโมงเต็ม)
- II.คำนวนหาขนาดรุ่นที่ต้องการ = ความจุแบตเตอรี่/6 (กรณีที่ต้องการชาร์จประมาณ 8 ชั่วโมงเต็ม)
หมายเหตุ เศษให้ปัดขึ้น สมมุติ Traction Battery ขนาด 24V, 200Ah ต้องการชาร์ตประมาณ 10 ชม.เต็ม คำนวนได้ 200/6 ~= 33.33A เราเลือกรุ่น FS2440B สำหรับระบบไฟฟ้า 220VAC, FT2440B สำหรับระบบไฟฟ้า 380VAC
