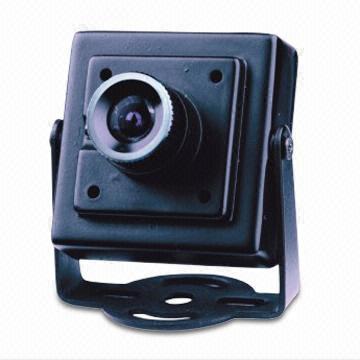

CCTV Miniature Camera

Product Specifications: CCD type: color Sharp 1/4-inch CCD
Pixels:
PAL (H x V): 500 x 582
NTSC (H x V): 510 x 492
Scanning system: PAL and NTSC
Horizontal resolution: 420TV Lines
Minimum illumination: 1.0Lux/F1.2
Video output: 1.0Vp-p/75 Ohms
AGC: auto
Backlight compensation: auto
Exposure mode: EE
Electronic shutter: 1/50 (1/60) to 1/1,00,000 seconds
Gamma correction: 0.45
Synchronization system: internal synchronization
Lens: 3.6mm (optional: 3.7, 2.8, 6, 8 and 12mm)
Audio: optional
Power supply: 12V DC
Operation temperature: -20 to 50 degrees Celsius
