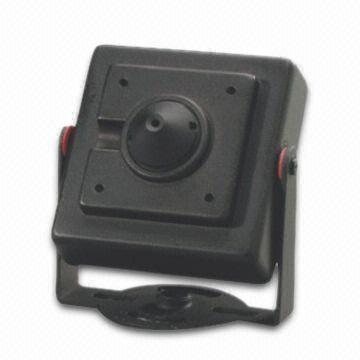

กล้องรูเข็มCCD Camera

CCD type: color Sharp 1/4-inch CCD
Pixels:
PAL: (H) 500 x (V) 582
NTSC: (H) 510 x (V) 492
Scanning system: PAL/NTSC
Horizontal resolution: 420TV lines
Minimum illumination: 1.0Lux/F1.2
S/N ratio: more than 48dB
Video output: 1.0Vp-p/75Ω
AGC: auto
Auto backlight compensation
Exposure mode: EE
Electronic shutter: 1/50 (1/60) to 1/100,000 seconds
Gamma correction: 0.45
Synchronization system: internal
Lens: 3.6mm (optional: 3.7, 2.8, 6, 8 and 2mm)
Audio: optional
Power supply: 12V DC
Operating temperature: -20 to 50 degrees Celsius
