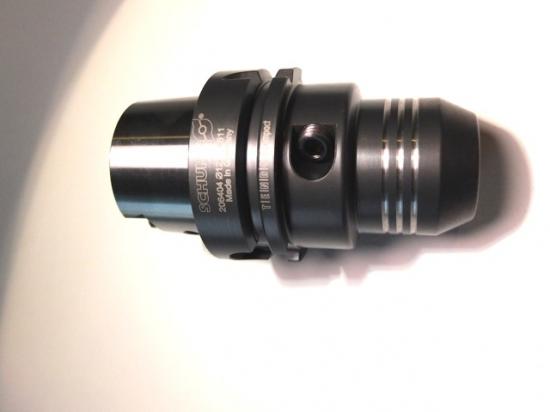

Tighter tolerances, lower manufacturing costs, better quality –TENDO E compact is the answer to the increasing demands ofvolume machining, which can’t be done by ER collet chucks,heat shrink toolholders, Weldon mountings, or cheap hydraulicexpansion toolholders anymore.
SCHUNK packed all high-performance parameters into the newhydraulic expansion toolholder and has achieved a moderntoolholder which surpasses all the requirements of volumemachining.
TENDO E compact comes at an amazing price, which helps faci-litate the change from a mechanical or heat shrinking toolhol-der to a high-precision TENDO-quality toolholder.
Highest torques, now of up to 900 Nm at a Ø 20 mm with dryclamping conditions, 520 Nm in oily conditions
Highest torques, now of up to 2000 Nm at a Ø 32 mm withdry clamping conditions, 900 Nm in oily conditions
Permanent run-out and repeat accuracy of lessthan 0.003 mm
The all-rounder for milling, drilling, reaming and tapping Increases tool life of up to 40 %, which results in
huge savings
Tool change within seconds without peripheral equipment Clamping to the “dead stop“
Excellent cost-performance ratio
