Version: Clamp body of quenched and tempered steel. Housing and lever of glass fibre
reinforced polyamide. Flexible plastic protective covers for gentle clamping.
Fast clamping of components using only one hand due to lever advance.
Can be operated using the 2-component handle or from the rail side.
Positive clamping (and releasing) by means of trapezoidal thread spindle as with
normal all-steel clamps. Ergonomic release button for easy slide bar movement.
Application: Universally applicable, in particular, where the user has only one hand free
for clamping, e. g. when holding strips, profiles, cables, pipes etc.
Also helpful for over-head work and springy or yielding components.
Clamping capacity: 300 and 600 mm

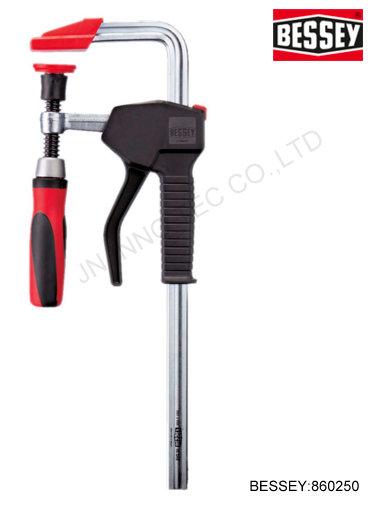

86 0250 One-hand clamp
Throat : 100 mm
Cross section of the slide beam : 19.5×9.5 mm
