Printer Specifications
Dye-sublimation thermal transfer direct to card
Full color or monochrome printing
Single- and dual-sided printing
700 cph monochrome single-sided
180 cph single-sided YMCKO
140 cph dual-sided YMCKOK
Edge-to-edge printing on standard CR-80 media
Supplies Specifications

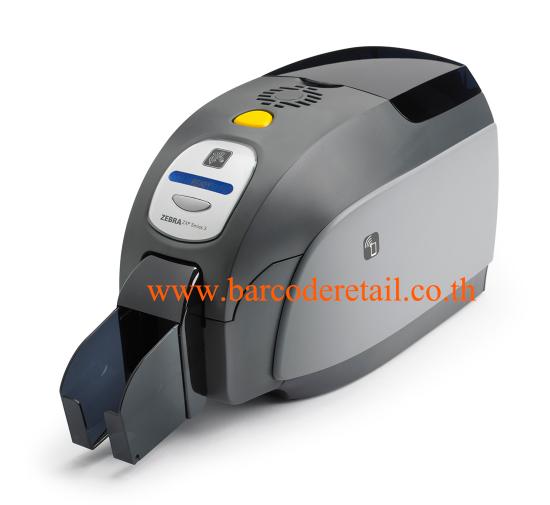

NOTE: The ZXP Series 3 printer is designed to work only with Zebra True Colours ix Series ZXP 3 high-performance ribbons.
Zebra ix Series intelligent technology automatically detects and authenticates ribbon.
Integrated cleaning roller included on each ribbon.
Media Starter Kit (single-sided)– 1 YMCKO ribbon, 200 30-mil PVC cards,
Cleaning Kit: 4 print engine cleaning cards and 4 feeder cleaning cards, 1000 images
Operating Characteristics
Operating temperature: 60° F (15° C) to 86° F (30° C)
Storage temperatures: 23° F (-5° C) to 158° F (70° C)
Operating humidity: 20% to 65% non-condensing
Storage humidity: 20% to 70% non-condensing
Media Storage:
Temperature: 41F to 77F (5C to 30C)
Humidity: 35% to 65% non-condensing
Do not store in directt sunlight
Electrical
Auto-switching single-phase AC power
Operating range: 90-132VAC and 190-264VAC RMS
Frequency range : 47-63 Hz.
Power requirement is 100W maximum continuous and 607W peak (for 450 microsec) output power.
FCC Class A
Physical Characteristics
Width: 7.9" (200 mm)
Height: 9.3" (236 mm)
Depth: 14.5" (368 mm)
Weight: 11.6 lbs (5.3 kg)
Optional Features
*Built-in 10/100 Ethernet connectivity
*CardSense™ single-card feed mode
ZebraCare™ extended product warranty programs
*Lockable enclosure with obscure output bin
Communication Interfaces
USB V2.0 (cable included) - standard
*Built-in 10/100 Ethernet - optional
Encoding Options and Specifications
Magnetic stripe encoder – ISO 7811 (new and re-encoded, tracks 1,2, and 3, high and low coercivity, stripe down, 30 mil card only
*Smart card contact station ISO 7816
*Combined MIFARE® ISO 14443 (13.56 MHz) and ISO 7816 Contact Encoder Specifications – PC/SC and EMV level 1 certified (50 card capacity [30 mil] external output hopper)
Encoding over USB and Ethernet
Card Compatibility
NOTE: For optimum print quality and printer performance, use of Zebra genuine supplies is recommended.
Card Thickness: 10-40 mil
Card Size: CR-80, ISO 7810 format, Type ID-1, 2.12" (54 mm) x 3.38"(86 mm)
Card Material: PVC and PVC composite
Smart Card Contact – ISO 7816-1,2,3,4
Smart Card Contactless MIFARE® ISO 14443A/B
Spot Color or monochrome print only on < 20 mil card thickness
