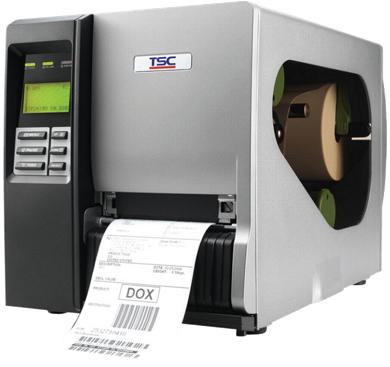

Industrial Barcode Printer TTP-2410M Pro Series Durable High-Speed Performance
The new high speed Pro Series features many improvements designed to increase the functionality and durability of TSC’s flagship industrial printer line.
Pro Series enhancements
The TTP-2410M Pro Series is based on the proven TTP-2410M platform with many significant changes. The new Pro Series features a separate die-cast aluminium base plate and backplane that includes a metal media supply spindle and sturdy two roller damper. This new design results in a more durable printer that is suited for your most heavy-duty demand cycles.
Other enhancements include a new motor mount for quieter printing, a gap sensor lock to keep the label sensor from shifting, and a new anti-static ribbon brush. Finally, TSC has added an optional USB Host option for applications that require the use of either a USB scanner or keyboard.
Superb resolution, great warranty
There are three models available with the TTP-2410M Pro Series. The TTP-2410M Pro prints at 203 dpi at speeds up to twelve inches per second, TTP-346M Pro offers 300-dpi resolution at speeds up to eight inches per second, and the TTP-644M Pro features 600 dpi resolution which makes it ideal for printing very small 2D barcodes, graphics, fine print and other ultra-high-resolution images. All TSC printers feature a standard two-year limited warranty.
Loaded with standard features
The TTP-2410M Pro Series printers are loaded with standard features including support for 600 meter ribbons, 8.2”OD media rolls, a large 6-button LCD display, built-in Ethernet, a PS/2 keyboard interface, and USB 2.0, parallel and serial interfaces. An industry-standard GPIO port or a USB Host port is available as an option.
Memory to spare
The Pro Series offers plenty of memory, including 32 MB DRAM and 8 MB FLASH, which provides easy storage of fonts, international character sets and graphics. The Pro Series also includes a secure digital (SD) FLASH memory card slot for inexpensively adding up to 4 GB of memory.
Economy Models
Built specifically for the budget–minded, the TTP-246M Pro 203 dpi and TTP-344M Pro 300 dpi printers offer the same heavy duty design of the TTP-2410M Pro but operate at slower speeds. The Plus standard features include a 6-button LCD display, 8 MB SDRAM, 4 MB FLASH with serial, parallel and USB connectivity, and optional internal Ethernet networking for simple integration.
Powerful TSPL-EZ™ Printer Programming Language
TSC ships TSPL-EZ™ firmware in all its printers. TSPL-EZ™ supports three different printer languages including TSC printer language, TPLE (Translation Printer Language Eltron) , and TPLZ (Translation Printer Language Zebra) . TSPL-EZ™ features internal scalable True Type fonts, and a BASIC interpreter with file manager for creating powerful printer interface applications with multiple type of hosts.
Product Sheet Download
Model Printing Method Resolution Max. Print Width Max. Print Length Max. Print Speed
TTP-2410M Pro
Thermal Transfer 203 dpi 4.09" 160" 12 ips
TTP-346M Pro
Thermal Transfer 300 dpi 4.09" 73" 8 ips
TTP-644M Pro
Thermal Transfer 600 dpi 4.09" 40" 4 ips
TTP-246M Pro
Thermal Transfer 203 dpi 4.25" 90" 8 ips
TTP-344M Pro
Thermal Transfer 300 dpi 4.09" 40" 6 ips
Key Features
Ethernet, USB 2.0, serial and parallel connectivity are standard
Heavy duty die-cast aluminum design
300 dpi & 600 dpi resolution options
600 meter ribbon supply
Large LCD display with 6-button menus
8 MB FLASH and 32 MB SDRAM memory
SD FLASH memory expansion up to 4 GB
Up to 305 mm (12”) per sec. print speed
32 bit RISC processor
PS/2 keyboard interface for stand-alone printing
TSPL-EZ™ firmware for plug-n-play ease
Powerful basic programming tools
Options include: USB Host for use with keyboards and scanners; peel, present & rewind; General purpose IO connectivity; knife & rotary cutters
Applications
Industrial-duty printing
Healthcare patient safety
Compliance labeling
Work in process
Order fulfillment
Distribution
Shipping/ receiving
Ticketing
Electronics & jewelry labeling
