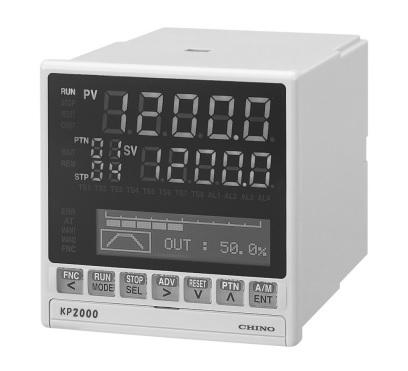

The KP2000 Series is a 96x96mm digital program controller with indicating accuracy of +/-0.1%, the control cycle of approximately 0.1 seconds and maximum 30 program patterns (maximum 19 steps/pattern).
The configuration of highly functional system is enabled by various options including 2 transmission signal output, 2 communications ports and arbitrarily-allocation of digital inputs/outputs.
Feature
- Large easy-to-view 5-digit display
- Outstanding controllability
- Program pattern
- Versatile control functions provided
- Communications 2-port type provided
- Transmission signal 2-output type provided
- DI/DO arbitrarily-allocation
- Output up to 8 points of time signals enabled
- Heater disconnection alarm
Main Specification
- Accuracy rating : +/-0.1% of measurement range +/-1 digit
- Input signal : DC voltage, Thermocouple, Resistance thermometer and DC current
- Control system : PID system
- Output type : On-off pulse type, On-off servo type, Current output type, SSR drive pulse type, Voltage output type
- Alarm type : Relay output signal
- Power supply : 100 to 240 V AC, 50/60Hz or 24 V (AC/DC)
Specification Sheet : https://www.chino.co.jp/english/download/pdf/KP2000_PSE-359.pdf
***Specifications subject to change without notice.
