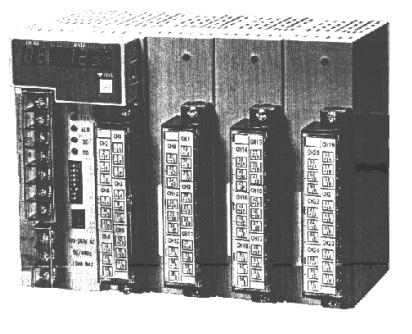

SE3000 series scanning units are designed for data logging with personal computer. The basic unit with 6 input points can be connected to 7 sub units (6 input points / sub unit) and maximum 48 analog data can be collected.
Two software packages, "KIDS" for data logging and "PASS" for parameter programming, are available.
Feature
- MODBUS protocol
- Universal input
- Parameter programming software package (Separate purchase required)
- Data logging software package (Separate purchase required)
Main Specification
- Number of measuring points : Basic unit 6 points, Sub unit 6 points/unit
Up to 7 sub units can be connected to one basic unit. (Up to 48 points)
- Input signal : DC voltage, Thermocouple, Resistance thermometer and DC current(Shunt resistors)
- Measuring interval : 6-point/1s, 12-point/2s, 18-point/3s, 24-point/4s, 30-point/5s, 36-point/6s, 42-point/7s, 48-point/8s
- Display : 7-segment red LED 7 -digit (Optional)
- Alarm Output : Not provided
- Power supply : 100 to 240 V AC, 50/60Hz
Specification Sheet : https://www.chino.co.jp/english/download/pdf/SE3000_PSE-300.pdf
***Specifications subject to change without notice.
