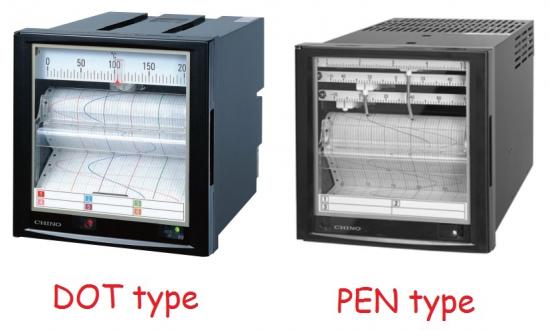

EL3000 series is a DOT printing type or PEN continuous type analog recorder sized 144x144 mm with 100 mm width chart.
The unit start recording as soon as the power supply and input are connected and it is also easy to operate.
Scale plate, input range and function of the recorder can be selected for various purpose and applications as many kind of option are prepared.
Feature
- Universal power supply
- Linear temperature scale
- Standard 6 chart speed
- Alarm setting (Alarm by front LED lighting) as standard
- Unit structure and light-weight
- Employing removable type terminal board
Main Specification
- Number of measuring points : 1, 2, 3 or 6 channels for DOT type, 1,2 or 3 pens for PEN type
- Input signal : DC voltage, Thermocouple, Resistance thermometer and DC current(Shunt resistors)
- Chart speed : 5, 10, 20, 40, 80 or 160 mm/hr (Switchable as standard)
- Alarm Output : Mechanical relay (Optional)
- Power supply : 100 to 240 V AC, 50/60Hz
Specification Sheet (DOT type) : https://www.chino.co.jp/english/download/pdf/EL3000_PSE-350B.pdf
Specification Sheet (PEN type) : https://www.chino.co.jp/english/download/pdf/PSE-361.pdf
***Specifications subject to change without notice.
