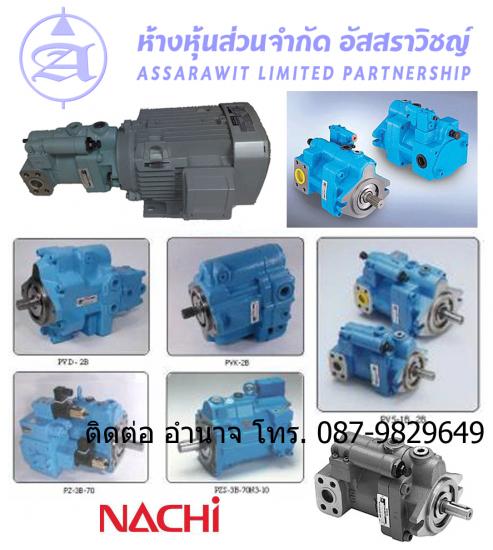

จำหน่ายอุปกรณ์ไฮโดรลิค ยี่ห้อ NACHI เป็นสินค้านำเข้าจากประเทศญี่ปุ่นโดยตรง สำหรับเครื่องจักรกล การเกษตร รถ เรือ โรงงานอุตสาหกรรม และงานที่เกี่ยวกับไฮโดรลิกต่าง ๆ ซึ่งเรามีทีมงานที่ความเชี่ยวชาญในอุปกรณ์ไฮโดรลิคที่พร้อมให้คำปรึกษาในการจัดเทียบ และจัดหาอุปกรณ์ต่าง ๆ เพื่อทดแทนอุปกรณ์ในเครื่องจักรเก่า และมีบริการหลังการขาย
สอบถามรายละเอียดเพิ่มเติมได้ที่ คุณอำนาจ โทร.087-9829649
Hydraulic Piston Pump
PVS Series
Energy-saving Type with
Drastically Reduced Loss
A NACHI-proprietary semi-circular barrel
swash plate that receives pressure
on its surface ensures a stable discharge
volume at all times. This eliminates
excess discharge volume, and
enables the effective use of power corresponding
to the load cycle.
This "energy-saving type" conserves
energy, reduces power loss, and helps
to reduce hydraulic costs.
Silent Type That Demonstrates
Its Power Quietly
Proprietary low-noise mechanisms are
incorporated on the shoe, swash plate,
valve plate, and other locations to
ensure silent operation. In particular, a
semi-circular barrel swash plate stabilizes
operation characteristics to ensure
silent operation. video
zoom
Energy-saving Type with
Drastically Reduced Loss
A NACHI-proprietary semi-circular barrel
swash plate that receives pressure
on its surface ensures a stable discharge
volume at all times. This eliminates
excess discharge volume, and
enables the effective use of power corresponding
to the load cycle.
This "energy-saving type" conserves
energy, reduces power loss, and helps
to reduce hydraulic costs.
Silent Type That Demonstrates
Its Power Quietly
Proprietary low-noise mechanisms are
incorporated on the shoe, swash plate,
valve plate, and other locations to
ensure silent operation. In particular, a
semi-circular barrel swash plate stabilizes
operation characteristics to ensure
silent operation.More specifications...
More specifications...
Variable Displacement Axial Piston Hydraulic Pump
PVS-2B Series
Features
• Low Noise and Low Pulsation Due to Use of 11 Pistons
• Load Sensing Control Type
• Flange Type Inlet Port (SEA J518b-1-1/2), Thread Type
Outlet Port (1-1/16-12UN-2B)
• Tandem Pump Installation Is Possible (SAE A 2 Bolts
Flange Mounting)
• Counter-Clockwise Direction of Rotation
• SAE B 2 Bolts Flange Mounting
• Shaft Dimension is 30º Involute Spline with 15T and
16/32 Dp
